Dental implant torsion tester
Standard
- YY/T 0315-2016 (China’s regulatory standard for titanium/titanium alloy dental implants, specifying torsional yield strength test requirements)
- ISO TS 13498:2011 (International standard for torsion testing of intraosseous dental implant systems, validating joint component integrity)
- ASTM F2068 (Standard specification for wrought titanium-6aluminum-4vanadium ELI alloy for surgical implant applications)
- ISO 14801 (Dynamic fatigue test for endosseous dental implants)
Product Advantages
- Ultra-Precision Torque Measurement
- 0.000002 Nm resolution and ±0.3% torque accuracy (superior to ISO TS 13498 requirements) for detecting microscopic material deformations.
- Universal Compliance
- Preloaded test protocols for YY/T 0315, ISO 13498, and ASTM F2068 standards, with customizable test sequences for hybrid implant designs.
- High-Speed Data Acquisition
- 500kHz sampling rate captures torque-angle curves in real time, critical for analyzing implant-bone interface behavior under cyclic loading.
- User-Centric Design
- 10.4" HMI touchscreen with multi-language interface (EN/DE/ZH/JP/ES) and one-touch test report generation (PDF/CSV).
- Industrial Durability
- Aircraft-grade aluminum alloy frame with anti-vibration mounting and IP54 dust/water resistance.
Product Features
- Torsion Testing:
- Torque range: 0.001–5.000 Nm (adjustable via brushless servo motor)
- Angle range: 0°–360,000° (100 full rotations) with infinite angle option for fatigue testing
- Speed control: 0.1°/min to 3,600°/min (60 RPM) for static/dynamic torsion simulations
- Advanced Fixture System:
- Quick-change collets for Ø2.0mm–Ø6.0mm implant diameters (compatible with Straumann®, Nobel Biocare®, and custom geometries)
- Self-centering chuck with laser-aligned grip surfaces to prevent specimen slippage
- Smart Control System:
- PID closed-loop control maintains ±0.1° angular accuracy during high-speed testing
- Automatic reversal at predefined torque/angle thresholds to simulate clinical failure modes
- Data Analytics:
- Built-in software calculates torsional yield strength (TYS), shear modulus, and fatigue life per ISO 13498 protocols
- 3D torque-angle curve visualization with zoom function for microscopic failure analysis
- Safety Features:
- Dual-channel emergency stop, overload protection (150% F.S.), and transparent polycarbonate safety enclosure
Technical Parameters
| Specification | Details |
|---|---|
| Torque Range | 0.001–5.000 Nm (500% overload capacity) |
| Torque Accuracy | ±0.3% of reading (0.000002 Nm resolution) |
| Angle Measurement | 0°–360,000° (±0.1° accuracy) |
| Test Speed | 0.1°/min – 3,600°/min (60 RPM) |
| Fixture Compatibility | Ø2.0mm–Ø6.0mm implants (ISO 13498/ASTM F2068) |
| Power Requirements | 110V/220V AC, 50/60Hz, 500W |
| Operating Temperature | 15–35°C (±1°C stability) |
| Footprint | 600mm (L) x 450mm (W) x 1,200mm (H) |
| Weight | 85kg (net) / 120kg (with safety enclosure) |
Accessories Included
- Collet Set – Quick-change chucks for Ø2.0/3.0/4.0/5.0/6.0mm implants (ISO 13498 compliant).
- Calibration Kit – NIST-traceable torque transducer and angle encoder for annual ISO 17025 compliance.
- Spare Parts – Replacement collets, O-rings, and high-strength bolts for critical components.
- Software License – Lifetime access to TorsionLab Pro (cloud-connected with API for integration with MIMICS/SolidWorks).
- Installation & Training – On-site setup by certified engineers + 16hrs virtual training for operators.

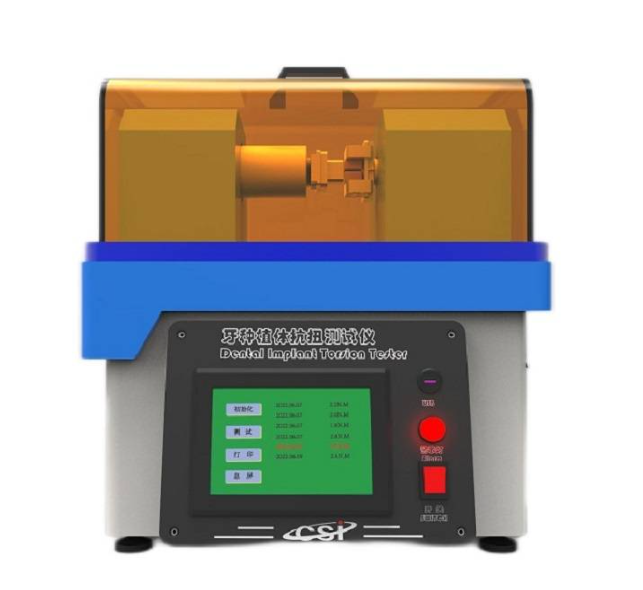

Dental implant torsion tester Display:
