Helmets Xenon Lamp Aging Testing Machine
Standard
- ISO 4892-2 (Plastics – Xenon arc exposure for material aging)
- ASTM G155 (Standard practice for operating xenon arc light apparatus)
- GB/T 16422 (China’s national standard for xenon lamp aging tests)
- ECE R22.06 (Helmet UV resistance requirements for long-term outdoor use)
Product Advantages
- Accelerated Aging Simulation
- 125W xenon lamp: Replicates 18 months of Florida sunlight in 500 hours (0.35nm/h UV dose).
- 250nm–400nm spectrum: Covers full UVA/UVB range for realistic material degradation.
- Multi-Sample Efficiency
- 4-helmet capacity: Tests batches in parallel for accelerated R&D cycles.
- Adjustable brackets: Fits EN 960 S/M/L headforms with 360° rotation.
- Precision Environmental Control
- Temperature range: 25–85°C (±1°C stability) with humidity control (10–70% RH).
- Irradiance calibration: Built-in sensor maintains 0.5W/m²/nm accuracy.
- Industrial Durability
- Stainless steel chamber: Corrosion-resistant with 10-year lifespan.
- Quiet operation: <55dB noise level for lab environments.
- User-Centric Design
- 7" touchscreen: Intuitive interface with multi-language support (EN/DE/ZH/ES/FR).
- Cloud connectivity: Syncs test data to AWS/Azure for remote monitoring.
Product Features
Xenon Light System
- 125W Lamp:
- 250nm–400nm spectrum: Mimics natural sunlight with UVA-340 filters.
- 5,000-hour lifespan: Reduces maintenance downtime.
- Optical System:
- Adjustable mirror array: Focuses light evenly across 4 helmets.
- Irradiance sensor: Auto-adjusts power for 0.5W/m²/nm consistency.
Environmental Control
- Climate Chamber:
- PID temperature control: 25–85°C (±1°C stability).
- Ultrasonic humidifier: 10–70% RH (±2% accuracy).
- Airflow System:
- HEPA filtration: Maintains chamber cleanliness (0.3μm particle removal).
Control & Safety
- HMI Interface:
- Programmable cycles: 1–9,999 hours with auto-shutoff.
- Alarm system: Audible/visual alerts for deviations.
- Safety Systems:
- Overheat protection: Halts testing if chamber exceeds 90°C.
- Emergency stop: Instantly deactivates xenon lamp.
Technical Parameters
| Specification | Details |
|---|---|
| Xenon Lamp Power | 125W (5,000-hour lifespan) |
| Wavelength Range | 250nm–400nm (UVA-340 filtered) |
| Sample Capacity | 4 helmets (EN 960 S/M/L compatible) |
| Temperature Range | 25–85°C (±1°C stability) |
| Humidity Range | 10–70% RH (±2% accuracy) |
| Chamber Material | Stainless steel (inner), sheet metal (outer) |
| Power Requirements | 220V/50Hz, 1.5kW (single-phase) |
| Footprint | 900mm (L) x 700mm (W) x 1,500mm (H) |
| Weight | 150kg (net) / 180kg (with accessories) |
Accessories Included
- Calibration Kit – NIST-traceable irradiance sensor and thermocouple.
- UV Filters – UVA-340 and UVB-313 options for different aging spectra.
- Software License – Lifetime access to XenoAging Pro (cloud-connected with API for integration with QMS systems).
- Installation & Training – On-site setup by certified engineers + 16hrs virtual training for operators.
- Documentation – Multilingual user manual and ISO 4892-2 compliance guide.

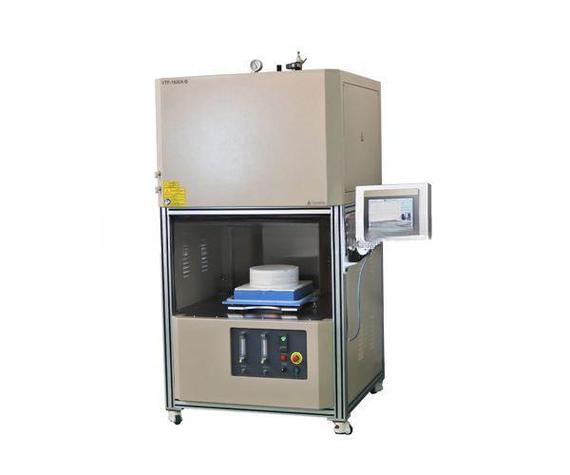

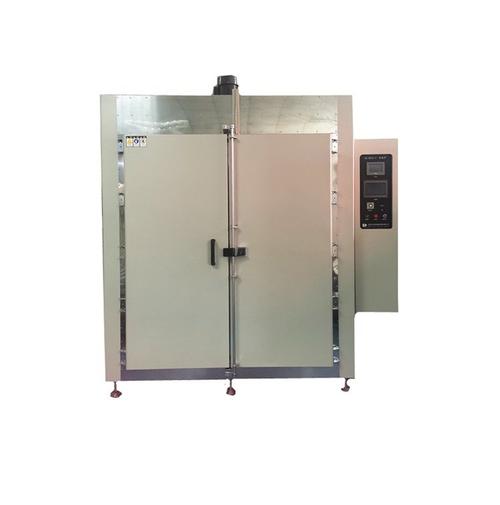

Helmets Xenon Lamp Aging Testing Machine Display:
