Safety Helmets Against Molten Metal Splashing Tester
Standard
- GB/T 2812-XXXX (China’s national standard for helmet resistance to molten metal splashes)
- GB 2811-2019 (Head protection – Safety requirements and test methods)
- ISO 13832-1 (Protective clothing – Performance requirements for protective clothing against molten metal splashes)
- EN 348 (Helmets – Test methods for resistance to molten metal splashes)
Product Advantages
Precision Molten Metal Delivery
- Adjustable pouring height: 225±5mm (standard) with 100mm range for variable impact angles.
- 150±10g iron sample: 93% Fe content ensures reproducible splatter patterns.
- Extreme Temperature Control
- 1,800°C max furnace: Reaches 1,400±20°C (standard) in <30 minutes.
- Dual-cooling system: Water-cooled controls and air-cooled test chamber for operator safety.
- High-Speed Imaging
- Thermal camera integration: Captures splatter dynamics at 1,000fps (50μm resolution).
- Auto-trigger recording: Initiates on pour detection for miss-free data capture.
- Safety First Design
- Interlocked enclosure: Prevents access during testing (Category 4 safety rating).
- Emergency dump system: Drains molten metal in <2 seconds during malfunctions.
- Data-Driven Compliance
- Automated reporting: Generates ISO/GB-compliant certificates with splatter coverage maps.
- Historical data review: Compares up to 10,000 tests via cloud-connected software.
Product Features
Molten Metal Handling
- Induction Furnace:
- 15kW power: Melts 150g iron samples to 1,800°C in 25 minutes.
- Ceramic crucible: Withstands thermal shock and chemical corrosion.
- Pouring Mechanism:
- Servo-controlled spout: ±1° angular accuracy for repeatable splatter patterns.
- Quick-release lance: Tool-free changes for iron/aluminum testing.
Test Chamber
- Refractory Lining: 1,200°C-rated ceramic fiber insulation.
- Splash Shield: Borosilicate glass window with 1,000°C resistance.
Control System
- HMI Interface: 15.6" touchscreen with live thermal video overlay.
- PID Temperature Control: ±10°C stability at 1,400°C.
Safety Systems
- Emergency Stop: Halts pouring and initiates furnace cooling.
- Over-temperature shutdown: Automatically drains crucible if sensors fail.
Technical Parameters
| Specification | Details |
|---|---|
| Pouring Height | 225±5mm (adjustable 100mm range) |
| Furnace Capacity | 150±10g iron (93% Fe min.) |
| Max Temperature | 1,800°C (1,400±20°C standard) |
| Cooling System | Water (controls), Air (test chamber) |
| Power Supply | 380V/50Hz, 25kW (3-phase) |
| Footprint | 1,250mm (L) x 750mm (W) x 1,350mm (H) |
| Weight | 350kg (net) / 400kg (with accessories) |
Accessories Included
- Iron Samples – 150g calibration bars (93% Fe, 10-pack).
- Crucible Kit – Ceramic and graphite liners for iron/aluminum testing.
- Calibration Tools – Thermocouple calibrator and splatter pattern templates.
- Safety Kit – Heat-resistant gloves, face shield, and emergency drain pan.
- Software License – Lifetime access to MoltenMetal Pro (cloud-connected with API for integration with QMS systems).
- Installation & Training – On-site setup by certified engineers + 24hrs virtual training for operators.

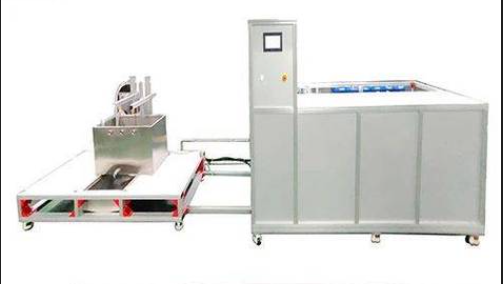

Safety Helmets Against Molten Metal Splashing Tester Display:
