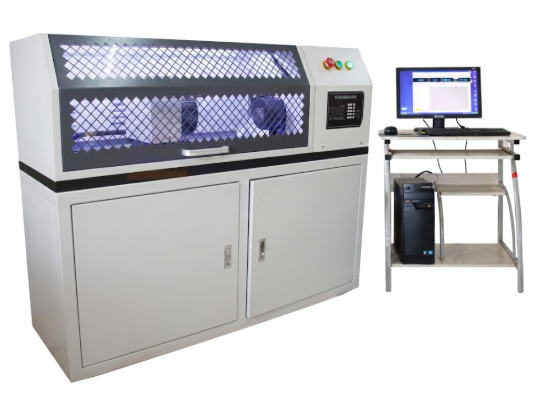

Timing Pulley Torsion Testing Machine
The Timing Pulley Torsion Testing Machine is specially designed for torsional mechanical performance testing of various timing pulleys. It can test the torsional performance, maximum torque, torsional strength, and other performance parameters of timing pulleys.
The machine can generate detailed test curves and print detailed test data reports.
Application
The Timing Pulley Torsion Testing Machine is mainly used for:
(1) Timing pulley torsional performance testing
(2) Maximum torque testing
(3) Torsional strength testing
(4) Timing pulley torsional mechanical performance evaluation
(5) Test data and curve analysis
Standards
GB/T 2611 — General Requirements for Testing Machines
Parameters
| Parameter | G-KN100 | G-KN200 | G-KN500 | G-KN1000 | G-KN2000 | G-KN5000 | G-KN10000 |
| Maximum Test Torque | 100 N·m | 200 N·m | 500 N·m | 1000 N·m | 2000 N·m | 5000 N·m | 10000 N·m |
| Test Travel | 300 mm | 500 mm | |||||
| Testing Machine Class | 0.5 | ||||||
| Torque Measurement Range | 1%–100% FS | ||||||
| Torque Minimum Resolution | 0.01 / 0.1 N·m | ||||||
| Angle Resolution | 0.01° | ||||||
| Maximum Torsion Angle | 0–Unlimited | ||||||
| Test Speed | 0.1–720°/min, customizable | ||||||
| Angle Indication Error | < ±0.5% | ||||||
| Angle Repeatability Error | < 0.5% | ||||||
| Test Force Indication Error | < ±0.5% | ||||||
| Test Force Repeatability Error | < 0.5% | ||||||
| Test Speed Accuracy | Better than ±1% of indicated value | ||||||
| Appearance | Complies with GB/T 2611 requirements | ||||||
| Torque Loading Direction | Both directions | ||||||
| Torsion Fixtures | Standard set | ||||||
| Power Supply | 220 V, 50 Hz | ||||||
| Applicable Products | Timing pulleys | ||||||
Features
(1) Dedicated Timing Pulley Testing – Specially designed for torsional mechanical performance testing of timing pulleys.
(2) Multiple Torque Configurations – Available configurations range from 100 N·m to 10000 N·m.
(3) Multiple Performance Parameters – Supports testing of torsional performance, maximum torque, and torsional strength.
(4) Detailed Test Curves – Provides detailed test curves for analyzing timing pulley torsional performance.
(5) Test Report Output – Supports printing of detailed test data reports.
(6) Bidirectional Torque Loading – Supports torque loading in both directions.
