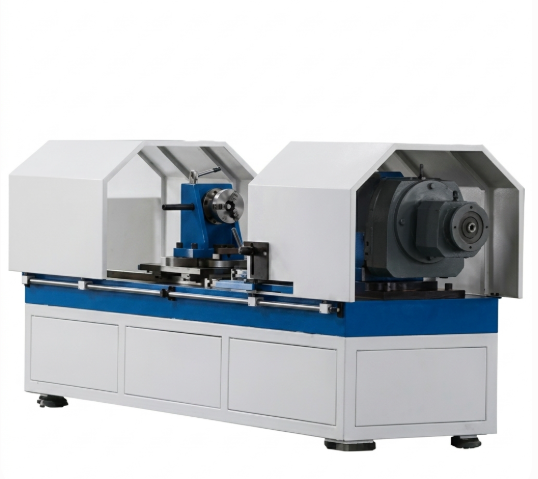

Rubber Hub Torsion Testing Machine
The Rubber Hub Torsion Testing Machine is mainly used to test and analyze the mechanical performance parameters of rubber hubs, including torque and torsion angle. The testing software provides data processing functions and can test the torque corresponding to a specified torsion angle or the torsion angle corresponding to a specified torque.
The system can automatically generate torque-angle, torque-rotation angle, torque-time, and torsion angle-time test curves. Test conditions and results can be automatically stored, displayed, and printed as test data, curves, and reports. The torsion testing machine is widely applicable to research institutes, metallurgy and construction, civil defense, colleges and universities, machinery manufacturing, transportation, and other industries.
Application
The Rubber Hub Torsion Testing Machine is mainly used for:
(1) Rubber hub torque testing
(2) Rubber hub torsion angle testing
(3) Torque-angle performance analysis
(4) Torque-time and torsion angle-time testing
(5) Rubber hub mechanical performance evaluation
Standards
GB/T 2611 — General Requirements for Testing Machines
Parameters
| Parameter | Specification |
|---|---|
| Maximum Test Torque | 100, 200, 500, 1000, 2000, 5000, 10000 N·m |
| Test Travel | 300 / 500 mm |
| Testing Machine Class | Class 0.5 |
| Torque Measurement Range | 1%–100% FS |
| Torque Minimum Resolution | 0.01 / 0.1 N·m |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 0–Unlimited |
| Test Speed | 0.1–720°/min, customizable |
| Angle Indication Error | < ±0.5% |
| Angle Repeatability Error | < 0.5% |
| Test Force Indication Error | < ±0.5% |
| Test Force Repeatability Error | < 0.5% |
| Test Speed Accuracy | Better than ±1% of indicated value |
| Appearance | Complies with GB/T 2611 requirements |
| Torque Loading Direction | Both directions |
| Torsion Fixtures | Standard set |
| Power Supply | 220 V, 50 Hz |
| Applicable Products | Rubber hubs |
Features
(1) Torque and Angle Testing – Supports testing of torque and torsion angle of rubber hubs.
(2) Flexible Test Control – Can test the torque corresponding to a specified torsion angle or the torsion angle corresponding to a specified torque.
(3) Automatic Curve Generation – Generates torque-angle, torque-rotation angle, torque-time, and torsion angle-time test curves.
(4) Automatic Data Storage – Test conditions and results can be automatically stored for subsequent review and analysis.
(5) Test Report Output – Supports display and printing of test data, curves, and test reports.
(6) Bidirectional Loading – Supports torque loading in both directions.
