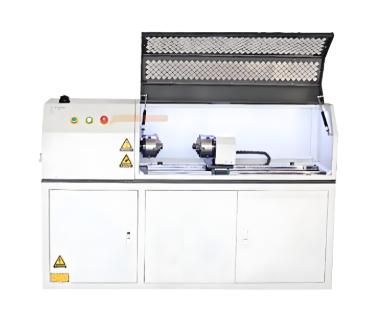

10–20000 N·m Torque Testing Machine
Torque Testing Machine / Torque Testing Instrument is mainly used to evaluate the static and dynamic torsional mechanical properties of various products and components. It is suitable for testing automotive components, mechanical parts, hand tools, medical products, torsion springs, fasteners, welded parts, connectors, rubber components, plastic parts, structural components, shafts, and other torque-loaded specimens.The test specimen is installed between adjustable fixtures, allowing the machine to accommodate different specimen sizes and configurations. The computer-controlled system automatically performs torque loading and data acquisition, providing comprehensive analysis of torsional performance.
Applications
The 10–20.000 N·m Torque Testing Machine is designed for high-precision torque and torsional performance testing of components and materials with different torque capacities. It can be used for:
Automotive Components: Drive shafts, steering components, transmission parts, and other torque-bearing components.
Mechanical Parts: Shafts, gears, couplings, mechanical assemblies, and structural components.
Hardware Tools: Wrenches, sockets, screwdrivers, and other torque-transmitting tools.
Fasteners and Connectors: Evaluating torsional strength and failure torque.
Torsion Springs: Measuring torque, torsion angle, and mechanical performance.
Medical Products: Torsional performance evaluation of applicable medical components.
Rubber and Plastic Parts: Evaluating torsional resistance and deformation characteristics.
Research and Quality Control: Suitable for R&D, incoming inspection, production quality control, and laboratory testing.
Technical Specifications
| Item | Specification |
|---|---|
| Maximum Test Torque | <10 N·m, 10. 20. 50. 100. 200. 500. 1.000. 2.000. 5.000. 10.000. 20.000 N·m; higher capacities customizable |
| Testing Machine Accuracy Class | Class 0.5 / Class 1 |
| Angle Resolution | 0.01° |
| Torsion Speed Control Range | 0.1–720°/min, customizable |
| Angle Measurement Range | 0–99.999° |
| Relative Repeatability Error of Indication | <0.5% |
| Loading Mode | Fully automatic |
| Equipment Weight | Approx. 300 kg |
| Completeness | Complies with applicable standard requirements |
| Power Supply | 220 V, 50 Hz |
| Protection Function | Overload protection |
| Applicable Products | Automotive components, mechanical parts, medical products, hardware tools, torsion springs, fasteners, welded parts, connectors, rubber parts, plastic parts, structural components, shafts, and other specimens |
| General Technical Requirements | Complies with GB/T 2611 |
Main Testing Functions
Static torsional stiffness testing
Static torsional strength testing
Torsional stiffness testing
Torque qualification testing
Destructive torque testing
Breaking torque testing
Torsional strength testing
Torque–angle curve analysis
Fatigue life and durability testing
Peak torque measurement
Torsion angle measurement
Data Acquisition & Analysis
The computer-controlled system can acquire and display:
Torque
Peak torque
Torsion angle
Test time
Torque–Time Curve
Torsion Angle–Time Curve
Torque–Torsion Angle Curve
Test results can be stored, retrieved, analyzed, and printed as test reports, providing convenient support for product development, quality control, material research, and laboratory testing.
Features
Ultra-Wide Torque Range: Configurations from below 10 N·m up to 20.000 N·m, with higher capacities available on request.
Fully Automatic Loading: Automatic torque loading reduces operator intervention and improves test consistency.
High-Precision Measurement: Available in Class 0.5 or Class 1 configurations.
High-Resolution Angle Measurement: Angle resolution reaches 0.01°, with a measurement range up to 99.999°.
Adjustable Test Speed: Torsion speed can be continuously adjusted from 0.1–720°/min according to test requirements.
Multiple Torque Configurations: Different torque ranges can be selected according to specimen requirements, avoiding unnecessary oversizing of the measurement system.
Reliable Repeatability: Relative repeatability error of indication is <0.5%.
Wide Application Range: Suitable for metals, plastics, rubber components, fasteners, shafts, tools, automotive parts, and other torque-loaded specimens.
Overload Protection: Built-in overload protection helps protect the torque sensor, drive system, and test specimen.
Standardized Construction: Overall machine requirements comply with GB/T 2611.
