Cable and Optical Cable Integrity Burning Tester
Application
This Cable and Optical Cable Integrity Burning Tester is used for testing cables and optical cables that require maintaining circuit integrity under a single-flame test with a temperature of no less than 750 ℃, while controlling heat output.
The Cable and Optical Cable Integrity Burning Tester consists of three main components: the Burning Control Box, the Fire-Resistant Test Rack, and the Control Cabinet.Both the Fire-Resistant Test Rack and the Control Cabinet are independently movable, each equipped with caster wheels at the base for easy relocation, cleaning, and maintenance.

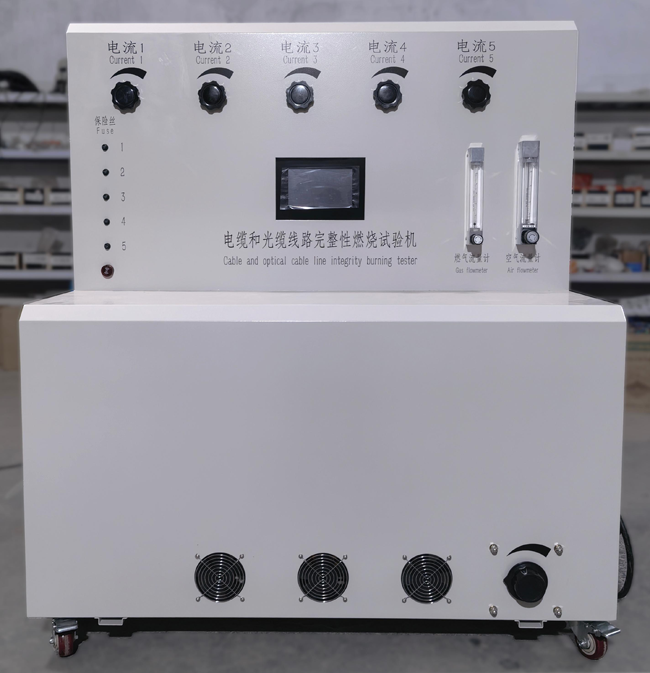

Control Cabinet
Standards
The Cable and Optical Cable Integrity Burning Tester complies with the following standards:
GB/T 19216.21-2003 / IEC 60331-21:1999 – “Tests on electric and optical cables under fire conditions – Part 21: Test procedures and requirements – Cables rated 0.6/1.0 kV and below”
GB/T 19216.23-2003 / IEC 60331-23:1999 – “Tests on electric and optical cables under fire conditions – Part 23: Test procedures and requirements – Data cables”
GB/T 19216.25-2003 / IEC 60331-25:1999 – “Tests on electric and optical cables under fire conditions – Part 25: Test procedures and requirements – Optical cables”
Parameters
(1)Burning Chamber:

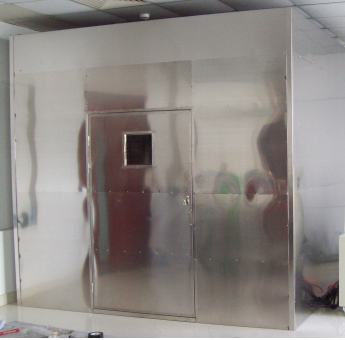

Constructed from suitable materials mounted on angle iron frames to form a cubic chamber.
Internal dimensions: 3 m × 3 m × 3 m (27 m³ total).
Structure options: brick wall or steel plate, selectable by the customer. If brick wall is chosen, customer must perform masonry.
(2)Sample Support Rack:
Samples are supported by two or three metal rings.
Horizontal fixed support: one end fixed, the other movable.
Metal ring inner diameter: 150 mm, made from Ø10 ± 2 mm round steel rods.
(3)Burning Device:
Burner Torch: Strip-type propane torch with Venturi mixer; nominal length 500 mm, width 15 mm. Three staggered rows of Ø1.32 mm drilled holes with 3.2 mm center spacing.
Torch positioned at least 200 mm above the chamber floor and 300 mm from any chamber wall.
Flow Meters: Air flow: 150 L/min; Propane flow: 8 L/min
Burner Control System: Includes pressure regulation valve, piezoelectric igniter, flame extinguishing device, temperature thermocouple, gas source (user-supplied), adjustment valve, ignition device, gas pipeline, flow meter, Venturi mixer, ball valves, air pipeline, and compressed air tank (user-supplied).
Timer: Adjustable 0–99.99 s/min/h
Ignition Device: Automatic ignition
Temperature Controller: Two-channel monitoring, adjustable range 0–1000 ℃. Flame temperature is adjusted via gas/air ratio, with real-time temperature displayed on touchscreen.
(4)Circuit Load:
Test Transformer: Three-phase, 6 kV
Test Voltage: 0.6/1.0 kV
Test Current: Standard requirement: 0.25 A
Installation Requirements (User-Supplied)
Item | Requirement |
Space Requirements | Control cabinet: 1400 × 600 × 1300 mm |
Weight | Approx. 350 kg |
Test Bench | L5 × W5 × H≥4 m; laboratory door H≥2.5 m, W≥2.5 m |
Power Supply | 3-phase 380 V ±10%, 50 Hz; Power: 1100 W (equipment consumption, not compressor) |
Water Supply | Not required |
Gas Supply | 98% propane; air compressor pressure ≥10 MPa |
Pollutants | Smoke and particulate matter |
Ventilation | Ideally in open environment; if enclosed, use fume extractor or connect to dust treatment/purification system |
Other Test Requirements | Gas cylinder with pressure-reducing valve (adjustable to 0.3 MPa) |

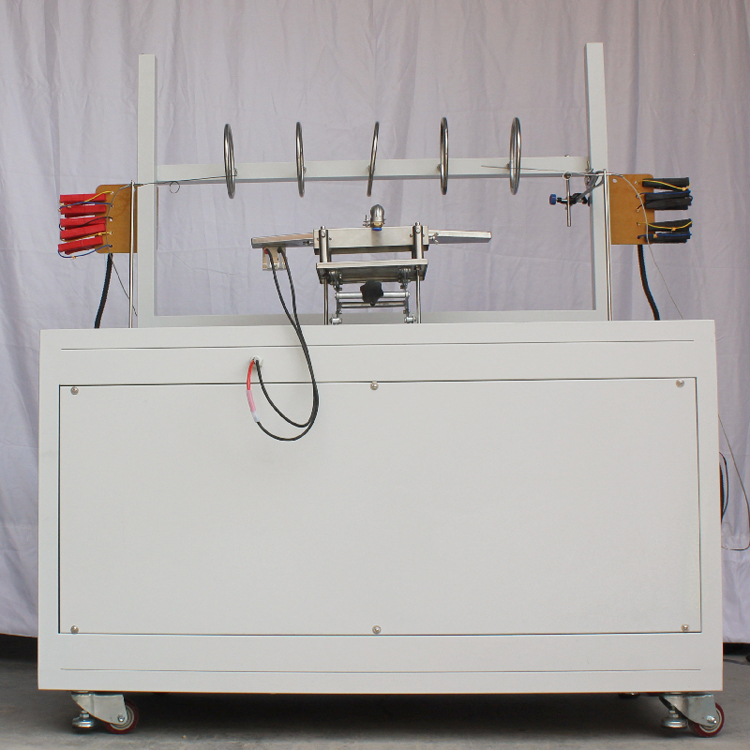

Fire-Resistant Test Rack

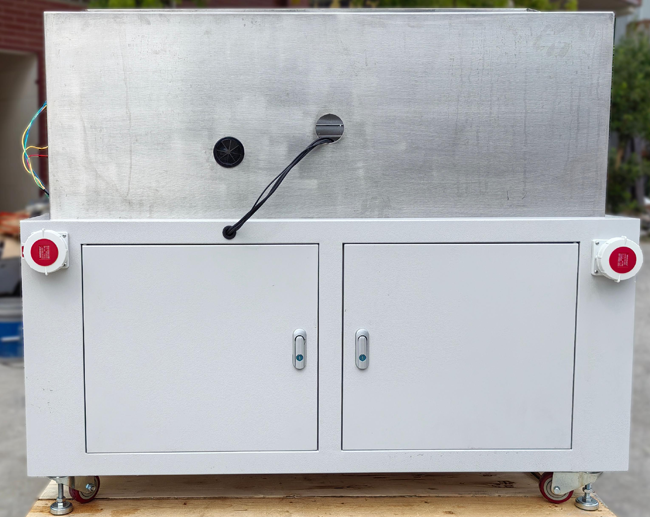

Optional Feature: Sprinkler System

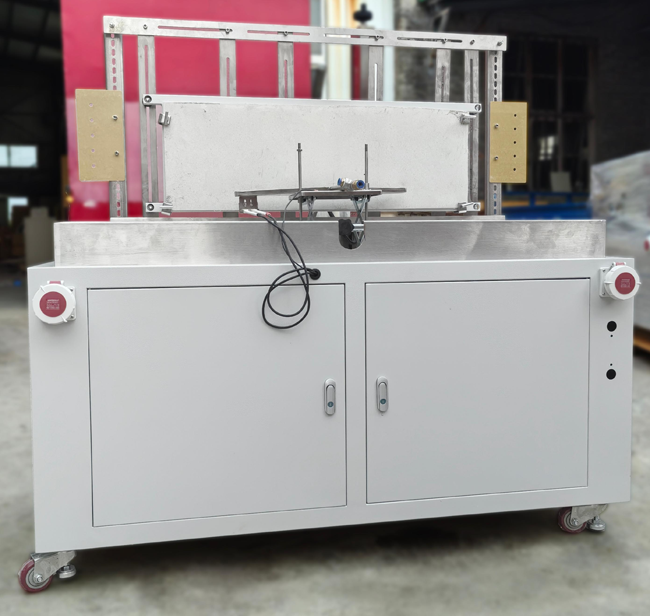

Optional Feature: Impact and Vibration Device
