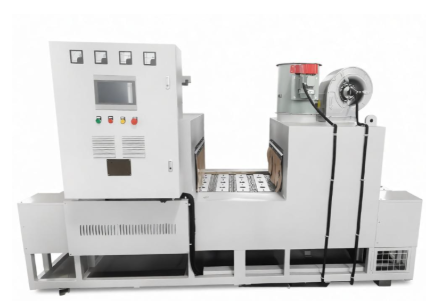

Stainless Steel Chain Plate Tunnel Furnace
The Stainless Steel Chain Plate Tunnel Furnace is an industrial continuous heating equipment that uses a continuously moving stainless steel chain plate as the conveying carrier, allowing materials to pass through the heating tunnel continuously for drying, baking, or heat treatment.The system adopts a modular design equipped with a precise temperature control system, enabling automated, large-scale, and efficient thermal processing of materials.
Applications
1. Food Baking
Used for continuous baking of:
Bread
Biscuits
Hard snack foods
Other baked products
2. Dehydration and Drying
Applied for moisture removal and drying of:
Agricultural products
Dehydrated vegetables
Seafood products
3. Industrial Curing
Used for:
Coating drying of electronic components
Resin curing of automotive parts
Industrial product heat treatment processes
4. Material Heat Treatment
Suitable for:
Stress relief treatment of metals
Glass heating processes
Material moisture removal and thermal processing
Product Parameters
| Parameter Item | Technical Specification |
|---|---|
| Conveyor Material | SUS304 / SUS316 Stainless Steel Chain Plate |
| Chain Plate Width | 300 mm – 2000 mm (Customized) |
| Tunnel Length | 6 m – 40 m (Designed according to requirements) |
| Operating Temperature | Room Temperature – 400℃ |
| Heating Method | Electric Heating / Gas Heating / Steam Heating / Far Infrared Heating |
| Operating Speed | 0.1 – 5 m/min (Variable Frequency Speed Control) |
| Temperature Control Accuracy | ±1℃ |
Features
1. Strong Load-Bearing Capacity
The fully stainless steel chain plate features:
High temperature resistance
Corrosion resistance
Strong load capacity
Excellent deformation resistance under heavy loads
It is suitable for continuous processing of medium and heavy workpieces.
2. Uniform Heating Performance
The equipment adopts:
Multi-zone independent temperature control
Hot air circulation system
Precise temperature zoning design
to ensure uniform heating and consistent processing quality.
3. Stable Operation
Equipped with a variable frequency stepless speed control system, the conveyor operates smoothly with low vibration, ensuring stable material transportation.
4. Energy Efficient Design
The furnace uses a high-quality high-density insulation layer, which effectively reduces heat loss, improves thermal efficiency, and lowers operating costs.
