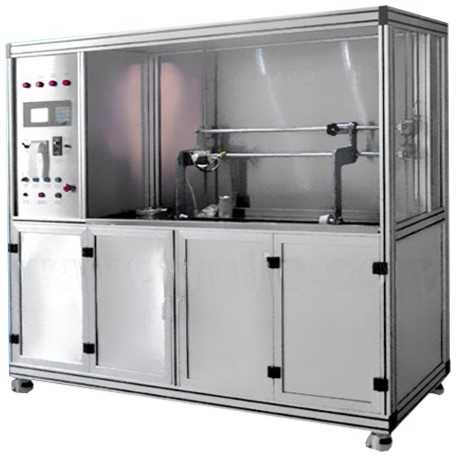

Pore Size Analyzer
Introduction
Test items:
Integrity (whether the damage of the filter, filter joint, end cap adhesive with or without defects);
The maximum bubble diameter of the first bubble point pressure filter;
The average pore size of the bubble point pressure filter;
Filtering accuracy (βx ≥ 20 corresponds to the reference value).
Test objects:
Oil filter material and air filter;
Oil filter and air filter;
All filter components of the chip filter and filter.
Application
Product development and quality control department monitoring center
Quality inspection and supervision institutions
Filter users and filter manufacturers
Features
◆ Filter element and filter material is easy to install;
◆ The filter element and the filter material are easy to convert to the test state (by adjusting the three-way wrench adjustment);
◆ The machine itself comes with an air pump;
◆ Temperature compensation. (Experimental results are not affected by temperature changes);
◆ Measurement data time monitoring (LCD display), the test results are intuitive and easy to understand;
◆ Come with a printer;
◆ Test results can be long-term preservation, easy to query (up to 200);
◆ The conversion coefficient between the filter precision and the average pore diameter of the six kinds of filter materials is set.
◆ With exhaust fan, protective cover;
◆ Filter automatically tightening, lifting device;
◆ A tank can be automatically added liquid, drainage;
◆ Aluminum alloy frame, stainless steel panel, stainless steel test tank.
Standards
ISO 2942:2004 Hydraulic fluid power -Filter elements -Verification of fabrication integrity and determination of the first bubble point
GB/T 14041.1-1993 Hydraulic fluid power-Filter elements-Verification of fabrication integrity
ISO 4003:1990 Permeable sintered metal materials; determination of bubble test pore size
GB/T 5249-1985 Permeable sintered metal materials-Determination of bubble test pore size
QC/T 794-2007 Internal-combustion engine industry filter paper
Technical Parameters
Filter can test the thickness of (0.1-3) mm. More than 3mm can be ordered special material fixture.
The test tank and platform dimensions of the filter element can be designed and manufactured according to customer requirements.
Test items:
Integrity (whether the damage of the filter, filter joint, end cap adhesive with or without defects);
The maximum bubble diameter of the first bubble point pressure filter;
The average pore size of the bubble point pressure filter;
Filtering accuracy (βx ≥ 20 corresponds to the reference value).
Test objects:
Oil filter material and air filter;
Oil filter and air filter;
All filter components of the chip filter and filter.
Application
Product development and quality control department monitoring center
Quality inspection and supervision institutions
Filter users and filter manufacturers
Features
◆ Filter element and filter material is easy to install;
◆ The filter element and the filter material are easy to convert to the test state (by adjusting the three-way wrench adjustment);
◆ The machine itself comes with an air pump;
◆ Temperature compensation. (Experimental results are not affected by temperature changes);
◆ Measurement data time monitoring (LCD display), the test results are intuitive and easy to understand;
◆ Come with a printer;
◆ Test results can be long-term preservation, easy to query (up to 200);
◆ The conversion coefficient between the filter precision and the average pore diameter of the six kinds of filter materials is set.
◆ With exhaust fan, protective cover;
◆ Filter automatically tightening, lifting device;
◆ A tank can be automatically added liquid, drainage;
◆ Aluminum alloy frame, stainless steel panel, stainless steel test tank.
Standards
ISO 2942:2004 Hydraulic fluid power -Filter elements -Verification of fabrication integrity and determination of the first bubble point
GB/T 14041.1-1993 Hydraulic fluid power-Filter elements-Verification of fabrication integrity
ISO 4003:1990 Permeable sintered metal materials; determination of bubble test pore size
GB/T 5249-1985 Permeable sintered metal materials-Determination of bubble test pore size
QC/T 794-2007 Internal-combustion engine industry filter paper
Technical Parameters
| Items | Parameters |
| Test the maximum pressure | 14.99kPa |
| Aperture test range | (5-120)μm |
| Filter paper thickness range | (0.1-3)mm(more than sub-range to be customized special fixture) |
| Clamp outer diameter | φ(88±1)mm |
| Clamp inner diameter | φ(72±0.2)mm |
| The height of the sample on the liquid | (12±3)mm |
| Test media | Recommend with isopropyl alcohol, industrial ethanol |
| Voltage | 380V |
| Power | 40W |
| Dimensions | 1750MM*850mm*1950mm(L*W*H) |
Filter can test the thickness of (0.1-3) mm. More than 3mm can be ordered special material fixture.
The test tank and platform dimensions of the filter element can be designed and manufactured according to customer requirements.
