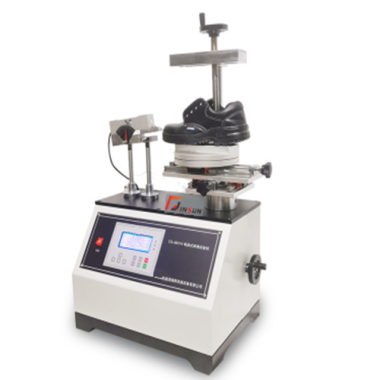

Shoe Peeling Strength Tester
1. Product Introduction & Applications
The Shoe Peeling Strength Tester is designed to evaluate the adhesion strength between the sole and upper of finished shoes. The test involves securing the shoe in a last clamp and applying a peeling force via a peeling knife to separate the sole from the upper. The required force is measured and used to calculate the peeling strength based on the knife width.
Applications:
Quality control of footwear adhesion and bonding
Testing finished shoes for durability and structural integrity
Evaluating adhesives and bonding processes in shoe manufacturing
Comparative testing of different shoe materials and constructions
2. Conformity Standards
GB/T 15107-2013 — Peeling strength of footwear
GB/T 3903.3-2011 — Footwear testing: peeling
BS 20344 — Test methods for footwear
QB/T 4329-2012 — Footwear performance standard
QB/T 1002-2015 Section 6.5 — Peeling strength
Additional national and international standards for footwear peel testing
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Peeling Force | 1000 N |
| Peeling Knife Width | 20 ± 0.2 mm and 10 ± 0.1 mm |
| Knife Edge Down Speed | 20 ± 2 mm/min (rise and fall speed adjustable) |
| Positioning Rod / Tie Rod Spacing | 50–70 mm (adjustable) |
| Dial Gauge Range | 0.001–10 mm (accuracy 0.001 mm) |
| Average Lifting Range | 40 mm |
| Machine Dimensions (W×D×H) | 560 × 320 × 750 mm |
| Power Supply | Single-phase AC 220V, 50Hz |
| Machine Weight | Approx. 45 kg |
4. Product Advantages
Measures Key Bond Strength: Provides quantitative evaluation of sole-to-upper adhesion, critical for footwear durability.
Standard Compliant: Meets national and international standards for shoe peeling strength testing.
Quantitative Results: Provides precise peeling force measurement and calculated peeling strength.
Controllable Test Parameters: Adjustable peeling speed and fixture spacing for consistent testing.
Versatile for Various Shoe Sizes: Adjustable components allow testing of multiple shoe sizes and constructions.
Accurate Measurement: Integrated force sensor ensures precise data acquisition.
Durable Construction: Robust design suitable for laboratory or production quality control environments.
5. FAQ
Q1: What types of shoes can be tested?
A1: The tester is suitable for all finished shoes, including leather, synthetic, and composite materials.
Q2: How is peeling strength calculated?
A2: Peeling strength is derived from the measured peeling force divided by the width of the knife edge.
Q3: Can the tester handle different shoe sizes?
A3: Yes, the positioning rod and tie rod spacing are adjustable from 50–70 mm to accommodate various shoe sizes.
Q4: What standards does it comply with?
A4: GB/T 15107-2013, GB/T 3903.3-2011, BS 20344, QB/T 4329-2012, QB/T 1002-2015, and related footwear standards.
Q5: What is the machine’s power requirement?
A5: Single-phase AC 220V, 50Hz.
