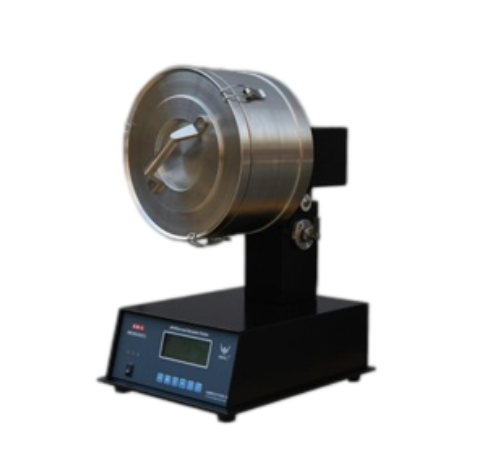

STD-6 Particle Abrasion Tester

The STD-6 particle wear tester is designed and developed by our company according to the standard technical indicators of the American ASTM D4058-96 (Reapproved 2015) "Standard Test Method for Wear of Catalysts and Catalyst Carriers". It is a special test instrument for the wear rate of granular catalysts, catalyst carriers, etc. It is widely used in the fields of petroleum, chemical industry, scientific research, etc.

Application

Applicable to wear resistance evaluation of:

Granular catalysts

Catalyst carriers

Petrochemical catalyst materials

Chemical industry granular materials

Scientific research and quality control laboratories

Industries include:

Petroleum refining

Chemical processing

Catalyst manufacturing

Research institutes and universities

Main functions

This instrument uses LCD display, Chinese and English menus, simple operation, and the set parameters have power-off memory function, and no repeated settings are required. It uses high-power stepper motor transmission and high-precision single-chip microcomputer control to make the work more stable and the speed accurate. This instrument provides two working modes: wear and screening to meet the different requirements of catalyst scientific research and production units.

Technical indicators

Grinding drum speed: 25, 30, 40, 50, 60, 80, 100 (rpm)

Grinding drum speed: 1-9999 rpm

Screening frequency: 1-9 Hz

Screening time: 1-9999 seconds

Size screen aperture: 20 mesh (or as required)

Grinding drum diameter: 10 inches (254mm)

Grinding drum net depth: 6 inches (152mm)

Grinding drum roughness: <250μ inches (6.4μmm)

Ribbon height: 2 inches (51mm)

Grinding drum material: stainless steel

Features

(1) Designed in compliance with ASTM standard requirements.

(2) Two operating modes: wear test and screening mode.

(3) LCD display with bilingual menu interface.

(4) Power-off memory function eliminates repeated parameter setting.

(5) High-power stepper motor ensures stable operation and accurate speed control.

(6) Stainless steel grinding drum with controlled surface roughness.

(7) Suitable for both research and industrial quality control applications.

FAQ

1. What is this product?

A dedicated laboratory instrument for determining the wear rate of granular catalysts and catalyst carriers.

2. What is this product used for?

It measures catalyst mechanical durability and resistance to particle attrition during handling and operation.

3. Why is this product important?

Catalyst wear directly affects process efficiency, pressure drop, and catalyst lifetime in industrial reactors.

4. What industries is this product suitable for?

Petroleum refining, chemical production, catalyst manufacturing, and research institutions.

5. What types of this product are available?

STD-6 standard model; customization options may include different sieve sizes or control configurations.
