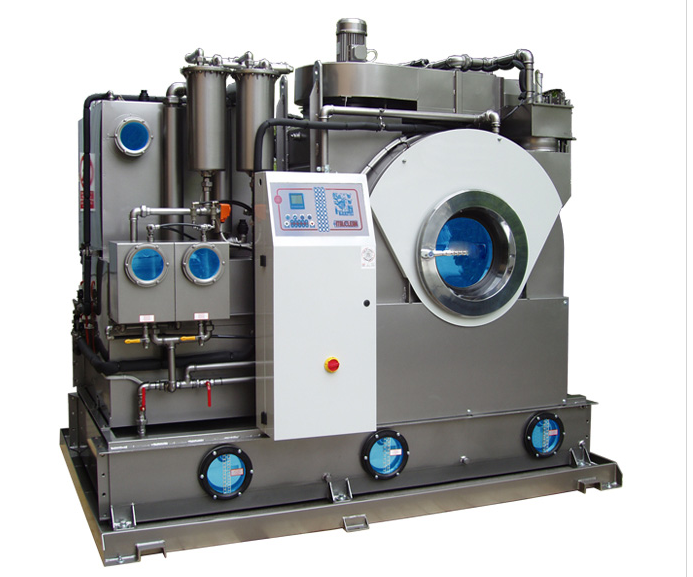

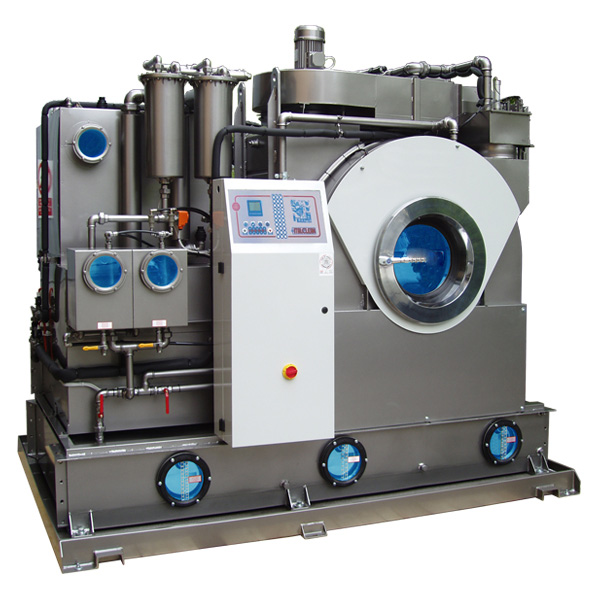

Automatic Dry Cleaning Machine/laundry machine
The new Liberty “Slim Line” machine /laundry machine was designed for customers who operate in limited spaces. Having only 1,10 meters of width, this is a compact professional machine perfect to be installed in small areas, granting effectiveness and flexibility. Ideal for hotels and shops, it is functional even in difficult situations, as it can wash over 20 kg/hour (Liberty 360) with high quality results. Also available with Activa – activated carbons recovery unit!
Technique Feature
1. Multi-function: washing, deagent and drying.
Technique Feature
1. Multi-function: washing, deagent and drying.
2. Color large screen LCD computer, man-machine dialogue and self-check fault, programmable, self-selecting program.
3. Digital frequency conversion technology can realize stepless speed regulation, which can be used to wash different fabrics for different processes.
4. Total suspension vibration isolation technology, high release rate, shorter drying time, no special foundation.
5. Washing and drying in vacuum state, improving the cleanliness, efficiency and high safety.
6. Efficient centrifugal filtration system, good filtering effect and low cost.
7. Distillation technology to ensure the purification of solvent and ensure the washing effect.
8. Multi-point temperature, pressure automatic protection device, strict implementation of EUCE standard, safe and reliable.
| MODEL | LIBERTY | 160 | 200 | 300 | 360 |
|---|---|---|---|---|---|
| BASKET CAPACITY |
kg lb |
8 17 |
10 22 |
15 33 |
19 42 |
| BASKET | |||||
| Volume | lt | 160 | 200 | 300 | 360 |
| TANKS | |||||
| Tank n'1 | lt | 134 | 134 | 134 | 134 |
| Tank n'2 | lt | 78 | 78 | 78 | 78 |
| CAPACITY | |||||
| Distillator | lt | 95 | 95 | 95 | 95 |
| DIMENSIONS | |||||
| Front | mm | 1080 | 1080 | 1080 | 1080 |
| Length | mm | 2207 | 2207 | 2207 | 2207 |
| Height | mm | 1970 | 1970 | 1970 | 1970 |
| WEIGHT | |||||
| Empty machine |
kg lb |
820 1810 |
950 2095 |
990 2180 |
1040 2295 |
| With solvent |
kg lb |
1150 2535 |
1290 2845 |
1330 2930 |
1450 3200 |
Notice
1. The oil solvent flash point below 40 ℃, and the electric resistance must be good;
1. The oil solvent flash point below 40 ℃, and the electric resistance must be good;
2. Do not continuously work too long;
3. Don't remould and repair the machine on your own;
4. Frequent ventilation and ventilation;
5. The cleaned and dried clothing must be quickly and completely cooled before the door can be opened. Do not place the clothed too long at high temperature.
6. The location area of the oil dry cleaner must be dry and ventilated, with no direct sunlight, and the indoor is decorated with fireproof materials. The power supply should be kept away from the machine;
7. Pipeline of petroleum exhaust shall be designed in higher ground;
8. Please wear protective gloves or an apron.
PREMIUM
The PREMIUM series is the classical wide machine for customers who do not have space restrictions. A successful model for its versatility, it is available with various options: two or three tanks, one or two filters, double still, Tandem version, etc. It comes with the typical ITALCLEAN features such as quality, low consumptions and friendliness of use and maintenance.
| MODEL | PREMIUM | 200 | 300 | 360 | 400 | 500 | 700 |
|---|---|---|---|---|---|---|---|
| BASKET CAPACITY |
kg lbs |
11 / 13 25 / 28 |
16 / 18 35 / 40 |
19 / 20 42 / 45 |
20 / 22 44 / 48 |
26 / 28 57 / 62 |
34 / 36 74 / 80 |
| BASKET | |||||||
| Volume | mm | 200 | 300 | 360 | 408 | 503 | 670 |
| TANKS | |||||||
| Tank n'1 | lt. | 135 | 115 | 115 | 140 | 180 | 180 |
| Tank n'2 | lt. | 185 | 115 | 115 | 190 | 180 | 180 |
| Tank n'3 | lt. | - | 90 | 90 | 245 | 245 | 245 |
| CAPACITY | |||||||
| Distillator | lt | 90 | 160 | 160 | 215 | 300 | 330 |
| DIMENSIONS | |||||||
| Front | mm | 1600 | 1600 | 1600 | 2080 | 2250 | 2250 |
| Length | mm | 1400 | 1420 | 1420 | 1450 | 1680 | 1700 |
| Height | mm | 1940 | 1980 | 1980 | 2070 | 2130 | 2240 |
| Weight |
kg lbs |
948 2090 |
978 2156 |
1038 2288 |
1216 2680 |
2018 4450 |
2790 6150 |
PREMIUM 900 / 1500
The PREMIUM 900 and 1500 are industrial machines for customers who have to process huge quantities of garments. They are available in the 3 tanks versions with capacities ranking from 45 to 80 Kg.
| MODEL | PREMIUM | 900 | 1500 |
|---|---|---|---|
| LOAD CAPACITY |
kg lb |
42 / 45 90 / 95 |
80 176 |
| DRUM | |||
| Volume | lt | 800 | 1530 |
| Extract Speed 1/2 | rpm | 380 | 320 |
| Installed Power | kw | 14 | 21 |
| TANKS | |||
| 1' tank | lt | 250 | 560 |
| 2' tank | lt | 250 | 560 |
| 3' tank | lt | 350 | 950 |
| STILL | |||
| Still 1 capacity | lt | 420 | 620 |
| Still 2 capacity | lt | 530 | 550 |
| OVERALL DIMENSIONS | |||
| Width | mm | 2740 | 3330 |
| Depth | mm | 2000 | 2350 |
| Height | mm | 2530 | 3200 |
| Weight |
kg lbs |
3500 7700 |
5600 12320 |
MINICLEAN
Miniclean is a small and revolutionary perchloroethylene drycleaning machine.
Based on the concept of simple operation and maintenance, it is the best solution for small businesses, with reduced consumptions and no need for air compressor.
| MODEL | MINICLEAN | TECNICAL DATA |
|---|---|---|
| Load capacity |
kg lb |
6 / 7 13 / 15 |
| Drum size | mm | 640 X 375 |
| Still | l | 70 |
| Tank | l | 105 |
| Dimensions | ||
| Length | mm | 900 |
| Width | mm | 1350 |
| Height | mm | 1850 |
| Net weight |
kg lb |
490 1080 |
| Weight with solvent |
kg lb |
620 1365 |
