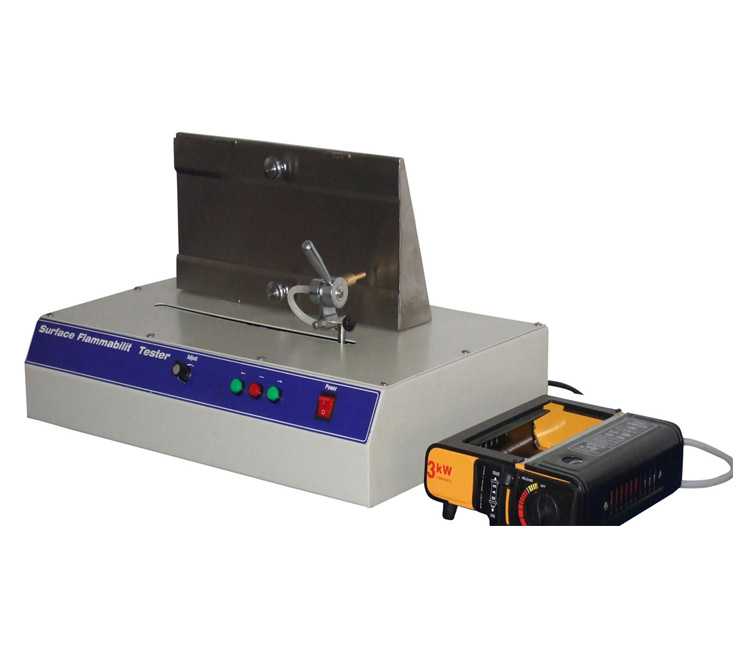

Surface Flammability Tester
Fabric surface combustion performance tester is designed by adopting the latest technology, suitable for determining the fabric surface burning time of fluffy textiles.
Standards
For different standards, different accessories are required .
GB/T 8745-2001 Textile. Combustion performance. Determination of surface burning time of fabrics
ISO 10047:1993 Textiles. Determination of surface burning time of fabrics
Features
1. Hot-wire ignition.
2. The burner automatic timing and positioning.
3. Ignition time from 0～99.99s, arbitrarily set. Burning time
Technical Parameters
1. Sample holder: L 150mm×W 75mm
2. Frame marker line: 75mm below the sample ignition place.
3. Ignition time: 0～99.99s, arbitrarily set.
4. Flame height measuring device: Flame height 40±2mm.
5. Distance from the top of the ignitor to the surface of the sample holder: 15mm.
6. Applied gas: Industrial butane or propane or butane/propane mixed gas.
7. Sample size: 150mm×75mm
Product Display
Standards
For different standards, different accessories are required .
GB/T 8745-2001 Textile. Combustion performance. Determination of surface burning time of fabrics
ISO 10047:1993 Textiles. Determination of surface burning time of fabrics
Features
1. Hot-wire ignition.
2. The burner automatic timing and positioning.
3. Ignition time from 0～99.99s, arbitrarily set. Burning time
Technical Parameters
1. Sample holder: L 150mm×W 75mm
2. Frame marker line: 75mm below the sample ignition place.
3. Ignition time: 0～99.99s, arbitrarily set.
4. Flame height measuring device: Flame height 40±2mm.
5. Distance from the top of the ignitor to the surface of the sample holder: 15mm.
6. Applied gas: Industrial butane or propane or butane/propane mixed gas.
7. Sample size: 150mm×75mm
Product Display
Note：QINSUN is very in place for textile testing and quality control,we have our own textile testing lab. Our textile testing equipment and testing methods are in the leading position in the industry. We have passed the textile testing certification and iso textile testing standards issued by a number of testing,We can provide textile testing equipment pdf manual. Sufficient inventory, big discounts, limited time promotion, Order now!
