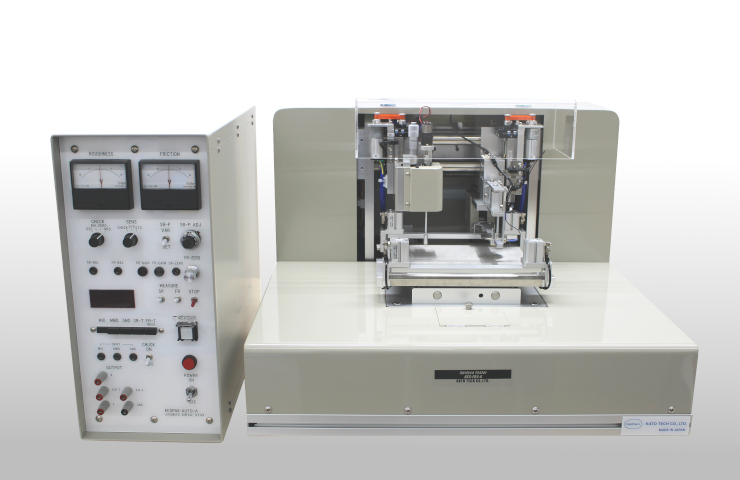

Surface Performance Tester
The Surface Performance Tester is a high-precision instrument designed to quantify the surface friction and roughness characteristics of fabrics, paper, nonwoven materials, and films. By simulating the tactile “stroking” motion of artisans and professionals, this device accurately measures friction coefficients, surface roughness, and displacement variations. The results provide objective data for tactile attributes such as fullness, smoothness, and stiffness, making it widely applicable in textile, paper, and film industries for research, quality control, and material evaluation.
Application
The Surface Performance Tester is suitable for a broad range of surface property evaluations, including:
Textile Industry: Surface performance testing of fabrics, fibers, and nonwovens.
Paper Industry: Measurement of surface friction and roughness of various paper types.
Film Materials: Evaluation of friction and roughness of films and membrane-like samples.
Coatings: Assessment of surface friction properties of coated materials.
Polymeric Materials: Surface evaluation of engineering plastics and polymer sheets.
Surface Treatment: Comparison of friction and roughness before and after surface treatments.
Research Institutions and Universities: Study of material tribological properties and surface structures.
Quality Control: Inspection of raw materials and finished products to ensure consistency of surface properties.
Standards
The Surface Performance Tester complies with the following standards:
(1) GB/T 1804 – Test methods for surface friction of textiles
(2) GB/T 12915 – Friction testing of nonwoven fabrics
(3) GB/T 19392 – Friction coefficient testing of paper
(4) ISO 8295 – Determination of frictional properties of textiles
(5) ISO 25178 – Surface roughness measurement
(6) ASTM D1894 – Coefficient of friction of plastics
(7) JIS L 1096 – Friction properties of textiles
(8) ASTM D3354 – Surface friction properties of textiles
Parameters
| Parameter | Specification |
|---|---|
| Testing Methods | Friction measurement, surface roughness measurement, surface displacement measurement |
| Maximum Friction Force | 200 gf |
| Friction Force Accuracy | ±0.5% full scale |
| Surface Roughness Accuracy | ±1.0% full scale |
| Maximum Surface Displacement | 30 mm |
| Surface Displacement Accuracy | ±0.5% full scale |
| Surface Roughness Sensor | Differential transformer |
| Surface Displacement Sensor | Potentiometer |
| Measurement Speed | 1 mm/sec |
| Sensor Dimensions | Friction probe: 10 × 10 mm; Roughness probe: 5 mm width |
| Operating Environment | 20–30°C, 50–70% RH |
| Power Supply | AC 100 V, max 50 W (air compressor 100 W) |
| Dimensions (W × D × H) | 550 × 520 × 420 mm |
| Weight | 50 kg |
Features
(1) Simulated fingertip sensor: Specially designed sensor mimics fingertip load and contact characteristics for accurate friction and roughness measurements.
(2) Multifunctional testing: Combines friction, roughness, and surface displacement measurements for comprehensive surface analysis.
(3) High precision: Ensures reliable, repeatable data for quality assessment and research.
(4) Stability and reliability: High-stability measurement system minimizes errors and environmental interference.
(5) Environmental adaptability: Operates across a wide range of temperature and humidity conditions.
(6) Automated operation and analysis: Integrated software provides real-time display, storage, and analysis of test data.
Accessories
(1) Main unit: Surface Performance Tester
(2) Friction sensor: Measures friction force and coefficient
(3) Roughness sensor: Measures surface roughness
(4) Displacement sensor: Measures surface displacement and deformation
(5) Optional pneumatic system: Provides additional load adjustment
(6) Optional air compressor: Supports air pressure requirements during testing
(7) Consumable probes: Interchangeable according to sample material or shape
Maintenance Information
Regularly clean sensors and sample platform to avoid dust accumulation.
Verify calibration of friction and roughness sensors periodically.
Ensure stable power supply and environmental conditions during operation.
Inspect mechanical parts and replace worn probes as needed.
Avoid exposure to excessive humidity or temperature extremes.
FAQ
(1) What is this product?
The Surface Performance Tester is a precision instrument that measures friction, surface roughness, and displacement of textile, paper, nonwoven, and film materials.
(2) What is this product used for?
You can use it to quantify tactile properties such as smoothness, fullness, and stiffness, providing objective data for material evaluation, research, and quality control.
(3) How does this product work?
The instrument applies a controlled load to the sample surface using simulated fingertip sensors, recording friction, roughness, and displacement in real time with differential transformers and potentiometers. The software generates curves and quantitative data for analysis.
(4) Why is this product important?
It converts subjective hand-feel observations into reliable, repeatable numerical data, enabling accurate evaluation of surface properties and ensuring consistency across materials.
(5) Which industries is this product suitable for?
It is suitable for textiles, paper, films, coatings, polymer materials, surface-treated materials, research institutions, and quality control laboratories where surface friction and roughness are critical.
