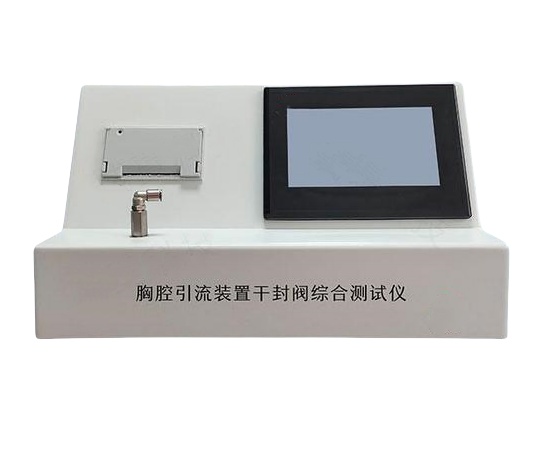

Chest Drainage Tester
The Chest Drainage Tester is a precision instrument designed to evaluate the performance of disposable chest drainage devices with dry-seal valves. You can use it to test vacuum display, opening pressure, closing performance, and high-vacuum automatic release valve functions in accordance with the YY/T 0583.2-2016 standard for disposable chest drainage devices.
Application
You can use this tester for:
(1) Testing negative pressure indicators of dry-seal chest drainage systems
(2) Measuring opening and closing pressures of valves
(3) Evaluating automatic high-vacuum release valve performance
(4) Quality control and functional verification of medical chest drainage devices
It is suitable for hospitals, medical device manufacturers, and research laboratories.
Standards
(1) YY/T 0583.2-2016 – Disposable Chest Drainage Device, Part 2: Dry-Seal Valve
(2) YY 0583.2-2012 – Disposable Syringes, Part 2: Performance Requirements and Test Methods
Parameters
| Parameter | Specification |
|---|---|
| Test Range | -100 to 10 KPa (standard configuration) |
| Accuracy | ±0.5% FS |
| Air Source Pressure | ≤0.7 MPa (user-supplied) |
| Air Source Interface | Φ6 mm polyurethane tube |
| Dimensions (L × W × H) | 390 × 410 × 190 mm |
Features
(1) Equipped with absolute pressure sensors and precision vacuum generator for highly accurate pressure measurement
(2) Embedded high-speed microcomputer control with user-friendly interface
(3) 7-inch color touch screen with intelligent data processing for smooth operation
(4) Intuitive UI design allowing customizable test programs and automated result judgment
(5) Built-in micro printer for immediate printout of test results
(6) Supports storage of up to 50,000 data records with historical data retrieval
(7) Dual-language interface (Chinese/English)
(8) Standard RS232 communication port for external system connection and data transfer
(9) Energy-saving design with low-power consumption compliant with national standards
Accessories
(1) Main unit
(2) Micro printer
(3) Air supply connection tube (Φ8 mm polyurethane, user-supplied air source)
Maintenance Information
(1) Keep the tester clean and free from dust and moisture.
(2) Regularly check pressure sensor calibration.
(3) Inspect air supply connections and tubing before each test.
(4) Ensure the micro printer has sufficient paper for operation.
(5) Perform software updates when prompted for optimal functionality.
FAQ
(1) What is this product?
It is a tester for disposable chest drainage devices with dry-seal valves.
(2) What is this product used for?
You use it to measure negative pressure display, valve opening/closing performance, and automatic release functionality.
(3) What is the working principle of this product?
The system uses precision pressure sensors and a controlled vacuum generator to simulate negative pressure conditions, recording valve responses and performance automatically.
(4) Why is this product important?
It ensures chest drainage devices operate safely and reliably, which is critical for patient care.
(5) What industries is this product suitable for?
It is suitable for hospitals, medical device manufacturers, quality inspection agencies, and research laboratories.
