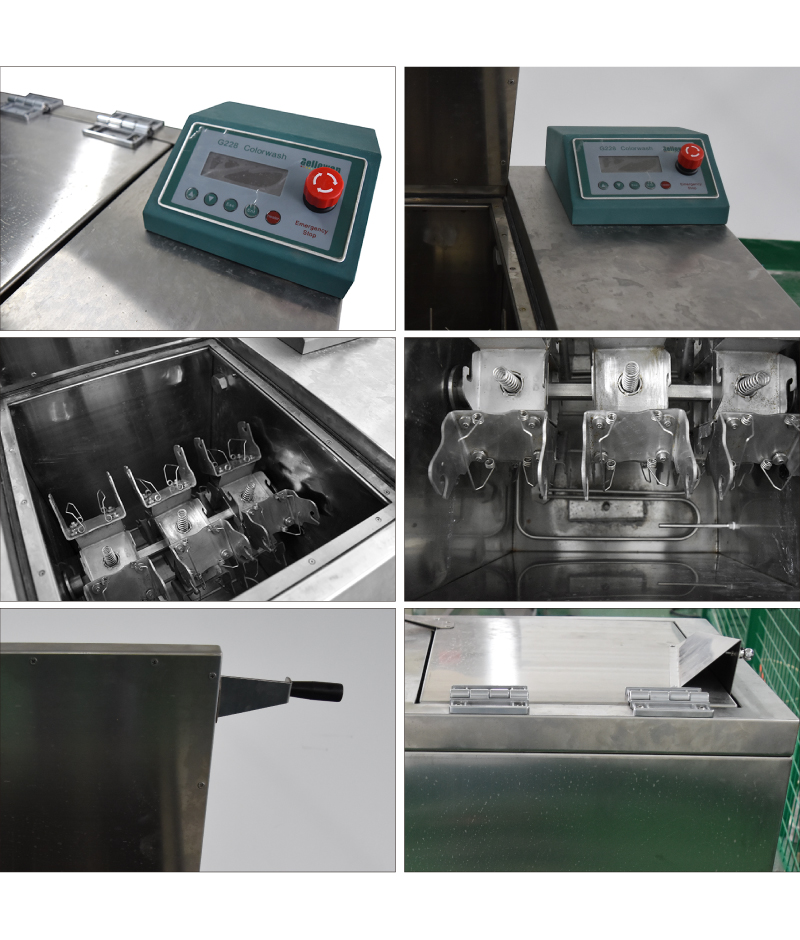

Washing Fastness Tester
The Washing Fastness Tester is designed to evaluate the resistance of textiles to laundering and dry cleaning. It is suitable for assessing the color fastness performance of dyes and finishes. The instrument features an intelligent controller to regulate temperature, time, and heating rate. It includes water inlet and drainage valves, interchangeable 550 mL and 1200 mL stainless steel washing cups with rotary discs, and programmable operation compatible with AATCC, ISO, and other test methods. Users can select from the last three tests or define custom programs.
Applications
(1) Assessing the color fastness of woven fabrics, knitted fabrics, nonwovens, dyed textiles, printed textiles, and finished garments to water washing.
(2) Testing the resistance of textiles to dry cleaning procedures.
(3) Quality control in textile manufacturing and laboratory evaluation of dye and finish performance.
(4) Pre-production verification of textile materials for functional or decorative applications.
(5) Comparative testing in research institutes and third-party laboratories.
Standards
(1) AATCC 28: Colorfastness to washing
(2) AATCC 61: Colorfastness to laundering: accelerated
(3) AATCC 86: Colorfastness to water
(4) AATCC 132: Colorfastness to repeated laundering
(5) ISO 105-C06: Textiles — Tests for colour fastness — Part C06: Colour fastness to domestic and commercial laundering
(6) BS 1006: British Standard for color fastness to washing
(7) N&S C4A, C5, C37, P3B, C10A: Marks & Spencer Standard Methods for washing fastness
(8) IWSTM 7, 115, 177, 193, 199, 240, 241: International Wool Secretariat Test Methods for color fastness to washing
(9) NEXT 2, 3, 5: Next Standard Methods for washing fastness
Features
(1) Intelligent programmable controller allowing selection of AATCC, ISO, or user-defined test programs.
(2) Interchangeable 550 mL and 1200 mL stainless steel washing cups with rotary discs.
(3) Adjustable temperature, time, and heating rate.
(4) Water inlet and drainage valves for convenient operation.
(5) Automatic display of operational parameters for selected test methods.
(6) Stable and durable construction suitable for laboratory and industrial environments.
Technical Parameters
| Item | Specification |
|---|---|
| Washing Cup Volume | 550 mL or 1200 mL |
| Number of Cups | 12 or 24 |
| Rotary Speed | 40 ± 2 r/min |
| Motor Power | 180 W, 380 V |
| Drainage Pump Power | 30 W |
| Heating Power (Test Chamber) | 1500 W × 3 |
| Heating Power (Preheating Chamber) | 1000 W × 3 |
| Timer Range | 0.1 min – 999.9 min |
| Power Supply | Three-phase four-wire, 380 V ±10%, 50 Hz |
| Dimensions (L×W×H) | 940 × 610 × 1000 mm |
| Weight | 128 kg |
FAQ
(1) What types of textiles can be tested?
Woven fabrics, knitted fabrics, nonwovens, dyed and printed textiles, and finished garments.
(2) Can it simulate domestic and commercial washing?
Yes, it supports accelerated and standard laundering procedures.
(3) What test standards are supported?
AATCC, ISO, BS, N&S, IWSTM, and NEXT standards, with full method compliance.
(4) Can custom test programs be created?
Yes, the controller allows user-defined programs and selection from previous test runs.
(5) Are different cup sizes interchangeable?
Yes, 550 mL and 1200 mL cups can be interchanged depending on test requirements.
(6) Is the device suitable for both laboratory and industrial use?
Yes, it is designed for stable and long-term operation in both settings.
