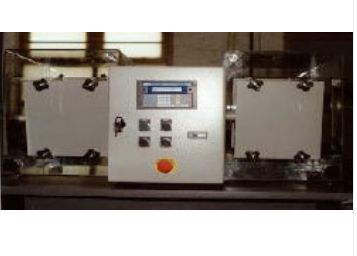

carpet abrasion resistance tester
Application
The Carpet Abrasion Resistance Tester is designed to evaluate the pilling, tufting, and overall wear performance of carpets. It is suitable for all loop-pile textile floor coverings and is widely used in carpet quality control, product development, and laboratory testing.
Standards
IWS TM 253 – Carpet Abrasion and Pilling Resistance Standard
Parameters
| Parameter | Specification |
|---|---|
| Test Chambers | 2 cubic-shaped, movable covers |
| Samples per Chamber | 2 |
| Rotation Speed | 50 revolutions per minute |
| Weighted Rubber Tubes | 8 provided (for uniform pressure application) |
| Rotation Direction | PLC-controlled, periodically changing |
| Preset Counter | Adjustable for number of revolutions |
| Safety | Acrylic shield for visibility and operator safety |
| Power Supply | AC 220V, 50Hz (typical) |
| Dimensions | Optional depending on model |
| Weight | Optional depending on model |
Advantages
PLC-controlled rotation direction ensures precise, reliable operation.
Compact and easy-to-use test chambers simplify sample loading and unloading.
Preset counter allows accurate and repeatable testing.
Weighted rubber tubes provide uniform pressure across samples.
Acrylic safety shield enhances safety while maintaining clear visibility.
Optional operating display provides real-time instrument status and feedback.
FAQ
What does the Carpet Abrasion Resistance Tester measure?
It measures pilling, tufting, and abrasion resistance of loop-pile carpets under controlled conditions.
How many samples can be tested at once?
Each of the two test chambers can accommodate two carpet samples, for a total of four samples per test cycle.
How is the test performed?
Carpet samples are affixed to the test chamber covers with double-sided tape, weighted rubber tubes are applied, and the chamber rotates at a controlled speed and direction until the preset number of revolutions is completed.
Why is PLC control important?
PLC control ensures precise timing and periodic rotation direction changes, improving reproducibility and reliability of test results.
What safety features are included?
Acrylic safety shields provide clear visibility while protecting operators from moving components.
Can the number of revolutions be customized?
Yes, the tester has a preset counter that allows users to set the desired number of revolutions for each test.
What types of carpets can be tested?
The tester is suitable for all loop-pile textile floor coverings, including commercial and residential carpets.
