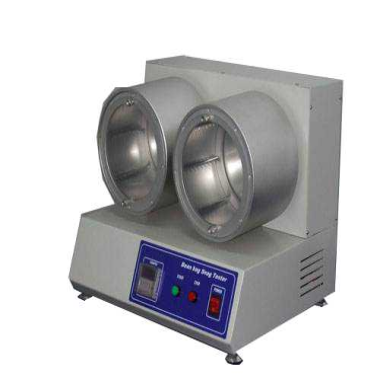

Bean Bag Snag Tester
The Bean Bag Snag Tester evaluates the snagging and picking resistance of knitted and woven fabrics. It operates by tumbling fabric samples with weighted bean bags inside two separate test cylinders, simulating real-world wear conditions. The machine ensures reliable and repeatable measurements of fabric durability.
Applications
Assessment of snagging resistance for knitted and woven fabrics
Quality control in textile manufacturing
Material research and development for apparel, upholstery, and technical textiles
Compliance testing for ASTM D5362 and JIS L1058 standards
Standards Compliant
| Standard | Scope |
|---|---|
| ASTM D5362 | Standard test method for snagging resistance of fabrics |
| JIS L1058 | Method for determining snagging and picking resistance of textiles |
Product Features
Dual Cylinder Design: Two independent test cylinders tumble fabric pillows containing weighted bean bags
Pinned Bar Mechanism: 8 pinned bars per cylinder with 9 needles each, ensuring consistent snagging simulation
Electronic Counter: Predetermined cycle counting for automatic test completion
Durable Construction: Robust stainless steel body for long-term laboratory or industrial use
Adjustable and Easy Operation: Rotation speed, cycle count, and sample placement are straightforward to set
Technical Parameters
| Parameter | Specification |
|---|---|
| Rotation Speed | 20 RPM |
| Work Stations | 2 |
| Cylinder Diameter | 200 mm |
| Pinned Bars | 8 pcs per cylinder |
| Needles per Pinned Bar | 9 pcs |
| Bean Bag Weight | 450 g |
| Machine Weight | 60 kg |
| Power Supply | 220/110V, 50/60Hz, 3A |
| Dimensions (W×D×H) | 480 × 380 × 390 mm |
