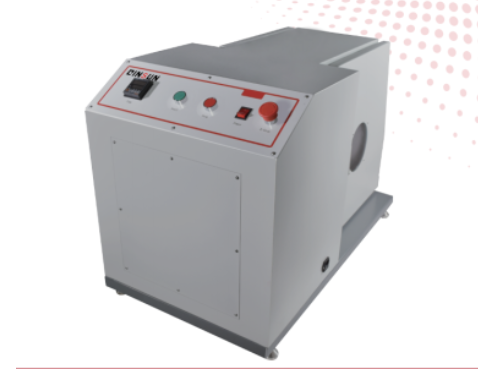

Hexapod Tumbler test machine
The Hexapod Tumbler Test Machine is designed to evaluate appearance changes and pile integrity in carpets and textile floor coverings. It simulates realistic foot traffic and pile compression to assess durability, abrasion resistance, and material performance.
Applications
Textile Industry: Evaluate carpet pile durability for residential, commercial, and automotive use
Quality Control: Ensure compliance with international appearance change standards
R&D: Test materials for resistance to abrasion, crushing, and pile distortion
Certification Labs: Provide data for SATRA, ISO, and BSEN compliance
Standards Compliant
| Standard | Scope |
|---|---|
| BS EN 1471:1997 | Evaluation of appearance changes in floor coverings |
| ISO 9405:2001 | Determination of appearance change after simulated traffic |
| ISO 10361:2000 | Carpet appearance evaluation using tumbler testers |
| IWS/Wools of New Zealand Methods 247 & 251 | Pile fabric abrasion resistance |
Key Features
Realistic Wear Simulation: Reciprocating mechanism mimics human walking and pile compression
Rapid Testing: Complete tests within a single working day
Adjustable Parameters: Digital counter presets cycles from 0–999,999
Replaceable Components: Durable polyurethane hexapod feet (3.8 kg) with easy replacement
Safety Design: Hinged cover with sensors prevents accidental access
Global Compliance: Meets BSEN, ISO, and IWS standards
Product Features
Hexapod Foot Design: Six polyurethane feet (3.8 kg) replicate walking pressure
Reciprocating Drum: Rotates at 35 ±2 RPM for bidirectional traffic simulation
Substrate Testing: Suitable for steel balls or textile samples in a 200 mm deep chamber
Digital Control: Touchscreen panel for cycle preset, speed adjustment, and real-time monitoring
Durable Construction: 8 mm stainless steel drum with corrosion-resistant materials
Technical Parameters
| Parameter | Specification |
|---|---|
| Control Panel | Touchscreen Timing Module |
| Hexapod Foot Weight | 3.8 kg (six polyurethane feet) |
| Power Consumption | 0.5 kW |
| Rotational Speed | 35 ±2 RPM |
| Drum Internal Depth | 200 ±1 mm |
| Cycle Counter Range | 0–999,999 (presettable) |
| Wall Thickness | 8 mm (stainless steel) |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 900 × 500 × 570 mm |
| Net Weight | 75 kg |
| Safety Cover | Hinged with sensor interlock |
Why Choose Us
Professional textile testing instrument manufacturer
Accurate and repeatable results for R&D, quality control, and certification labs
Ergonomic and safe design for long-term operation
Meets BSEN, ISO, and IWS standards for carpet and textile testing
FAQ
1. What types of materials can be tested?
Carpets, rugs, and textile floor coverings, including synthetic and wool blends.
2. How is wear simulated?
Six polyurethane hexapod feet apply pressure while the drum rotates reciprocally to mimic foot traffic.
3. What is the maximum number of cycles?
Up to 999,999 cycles, programmable via digital counter.
4. Is it safe for continuous operation?
Yes, equipped with a hinged cover and sensor interlock for operator protection.
5. Are the hexapod feet replaceable?
Yes, the polyurethane feet are durable and easily replaced after 2+ years of use.
