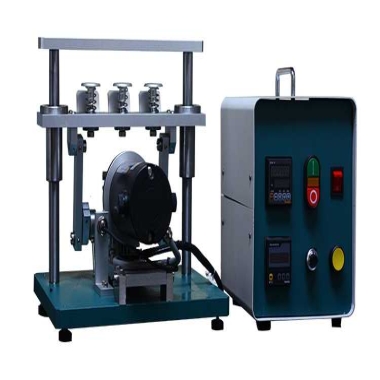

Low Temperature Chrysler Fold Tester
The Low Temperature Chrysler Fold Tester evaluates the resistance of soft trim materials to cold cracking. It is designed according to Chrysler LP-463-KB-28-01 Method A, simulating folding and bending of materials in low-temperature environments.
The tester features automatic cycle counting, cold-resistant motors, and a control box positioned outside the cold chamber for convenient operation.
Applications
Measure cold crack resistance of soft trim materials
Evaluate automotive interior components in low-temperature conditions
Quality control for leather, synthetic leather, and soft trim materials
R&D testing for material durability under cold environments
Testing Standards
| Standard | Scope |
|---|---|
| LP-463-KB-28-01 Method A | Chrysler cold fold testing of soft trim materials |
Key Features
Mechanical components made of aluminum and stainless steel
Durable powder-coated and anodized finishes
Precision ball and needle bearings for smooth operation
Cold temperature capable (-29°C)
Programmable cycle counter with automatic stop
Adjustable test speed
Designed to operate reliably in low-temperature environments
Technical Parameters
| Item | Specification |
|---|---|
| Environmental Temperature | -29 ± 1.1°C |
| Speed | 90 cycles/min |
| Test Stations | 2 |
| Plates Open | 32 mm |
| Plates Closed | 3 mm |
| Holder Width | ≥51 mm |
| Cycle Counter | 4 digits |
| External Dimension | 12 × 10 × 5.5 in (W×L×H) |
| Weight | 21 kg (46 lb) |
Why Choose Us
Professional manufacturer of automotive testing instruments
Compliant with Chrysler LP-463-KB-28-01 standards
Accurate, reliable, and easy-to-use in cold environments
Adjustable for different trim materials and thicknesses
Full technical support, installation, and maintenance services
FAQ
1. What materials can be tested?
Leather, synthetic leather, and soft trim materials for automotive interiors.
2. What is the minimum operating temperature?
The tester operates at -29 ± 1.1°C.
3. How many stations does the machine have?
Two stations for simultaneous testing of two samples.
4. Can the test speed be adjusted?
Yes, adjustable to meet different test requirements.
5. Does the machine stop automatically after set cycles?
Yes, the programmable cycle counter stops the test automatically.
