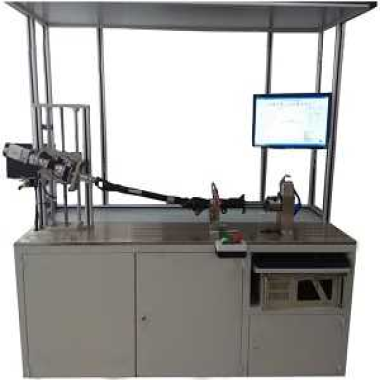

Steering Colomn Durability Test Stand
The Steering Column Durability Test Stand evaluates the performance and reliability of automotive steering column assemblies. It tests torsion, rotary, vibration, bending, spline wear, and locking strength to ensure driving safety and handling stability.
Built for R&D and quality control, it simulates real-world operating conditions, providing accurate, repeatable, and standards-compliant results.
Application Scenarios
Automotive R&D & Manufacturing: Durability testing of clutch, brake, and adjustable steering columns.
Safety & Reliability Assessment: Torsion, rotary, bending, vibration, and locking strength evaluation.
Quality Control: Confirms compliance with OEM and industry standards before production.
Component Optimization: Analyzes spline shaft, sleeve wear, and adjustment mechanisms.
Compliant Standards
| Standard | Description |
|---|---|
| ISO 4138 / ISO 6726 | Steering component performance and durability |
| QC/T 727-2006 | Automotive steering column durability test methods |
| OEM-specific standards | VW, GM, Toyota, Ford, etc., customizable |
Key Features
Mechanical Module: Clamping and motion conversion for accurate torsion, bending, and rotary simulation.
Power Module: AC servo motor with harmonic reducer, torque sensor, magnetic brake, and pneumatic drives.
Control & Monitoring: Real-time monitoring, programmable test sequences, and data acquisition.
Multi-Dimensional Testing: Torsion, rotary fatigue, vibration, bending, spline wear, locking strength.
Flexible & Modular: Supports different steering column types and sizes.
Technical Advantages
Accurate replication of vehicle steering loads
Continuous data acquisition for torque, displacement, and fatigue cycles
Customizable test protocols for OEM requirements
Safety features including overload protection and emergency stop
Why Choose Us
We are a professional manufacturer of automotive testing instruments and a complete test solution provider.
Customizable systems for various steering column assemblies
Compliance with international and OEM standards
Full support: installation, training, and technical consultation
Reliable and repeatable durability testing for R&D and QC
Frequently Asked Questions (FAQ)
1. Which steering columns can be tested?
Manual, power-assisted, and adjustable steering columns of various vehicles.
2. What durability tests are included?
Torsion fatigue, rotary fatigue, vibration, bending, rotary bending, spline wear, locking strength.
3. How is loading applied?
Via AC servo motors, harmonic reducers, torque sensors, and pneumatic drives to simulate real-world conditions.
4. Can test protocols be customized?
Yes, for OEM standards, vehicle type, and steering column geometry.
5. Does the system provide data analysis?
Yes, it records, monitors, and stores test results for reporting and evaluation.
