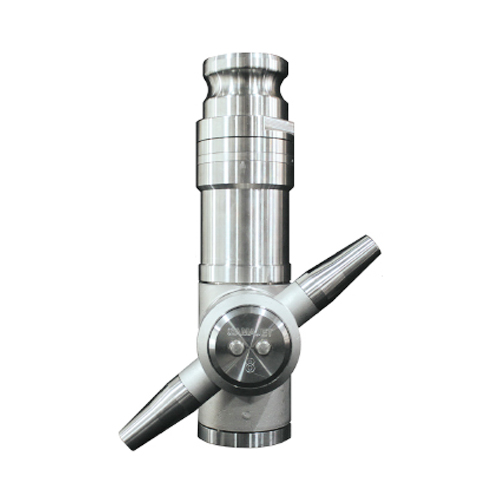

360 spray 3D rotary jet head for large tanks
- Working Principle:
- The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.
- Technical Data:
High impact 3D rotary tank washer
Model number: DG20 3D rotary jet head
Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.
● Optimized structural design results in a water jet that produces greater impact
● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid
● Independent gearbox design protects gear from damage and can work in poor water quality
● Adopt high hardness and wear resistant materials, long service life
● The rotating shaft and other parts are made of tungsten carbide, which has a longer service life
Dimensions:
Simulation of cleaning process:
KLY DG20 series rotary tank washer is suitable for three-dimensional cleaning of medium and large tanks, spray dryer, fracturing mud tanks, fermentation tanks, cabin and storage tanks, such as oil tank cleaning stations, beer, pharmaceuticals, marine, chemical, industrial fermentation industry and occasions requiring high-impact cleaning.
