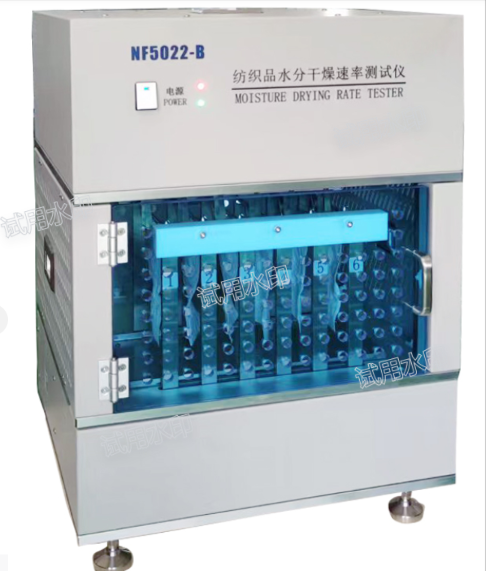

Textile water evaporation rate tester
Scope of Application
This instrument is used for testing and evaluating the moisture absorption and quick-drying performance of various textiles. The quick-drying property of textiles is assessed by measuring the rate of water evaporation.
Technical Parameters
| Sensor Accuracy | 0.001g |
| Sample Weight | < 100g |
| Sample Weighing Interval | ≥1 minute |
| Applicable Sample Size | 100mm × 100mm |
| Power Supply and Power | AC220V ± 10V, 50Hz, 200W |
| Instrument Dimensions (L×W×H) | 500 × 450 × 665mm |
| Instrument Weight | 40kg |
| Number of Workstations | 6 workstations (6 motors independently controlled) |
| Control Mode | Computer software upper computer control |
Instrument Features
- Equipped with imported high-precision balance, accuracy 0.001g.
- Institutional self-locking function to prevent accidents after sudden power failure, ensuring safer use.
- Uses high-quality drive motors for smooth operation and low noise.
- Optimized structural design for precise positioning.
- Can test up to 6 workstations simultaneously or select the number of workstations as needed.
- Flexibly set the weighing interval time for experiments.
- Test termination condition: evaporation rate change does not exceed 1%.
- Automatically generates test result curves.
- Automatically calculates evaporation rate, ensuring accurate test data.
Note：QINSUN is very in place for textile testing and quality control,we have our own textile testing lab. Our textile testing equipment and testing methods are in the leading position in the industry. We have passed the textile testing certification and iso textile testing standards issued by a number of testing,We can provide textile testing equipment pdf manual. Sufficient inventory, big discounts, limited time promotion, Order now!
