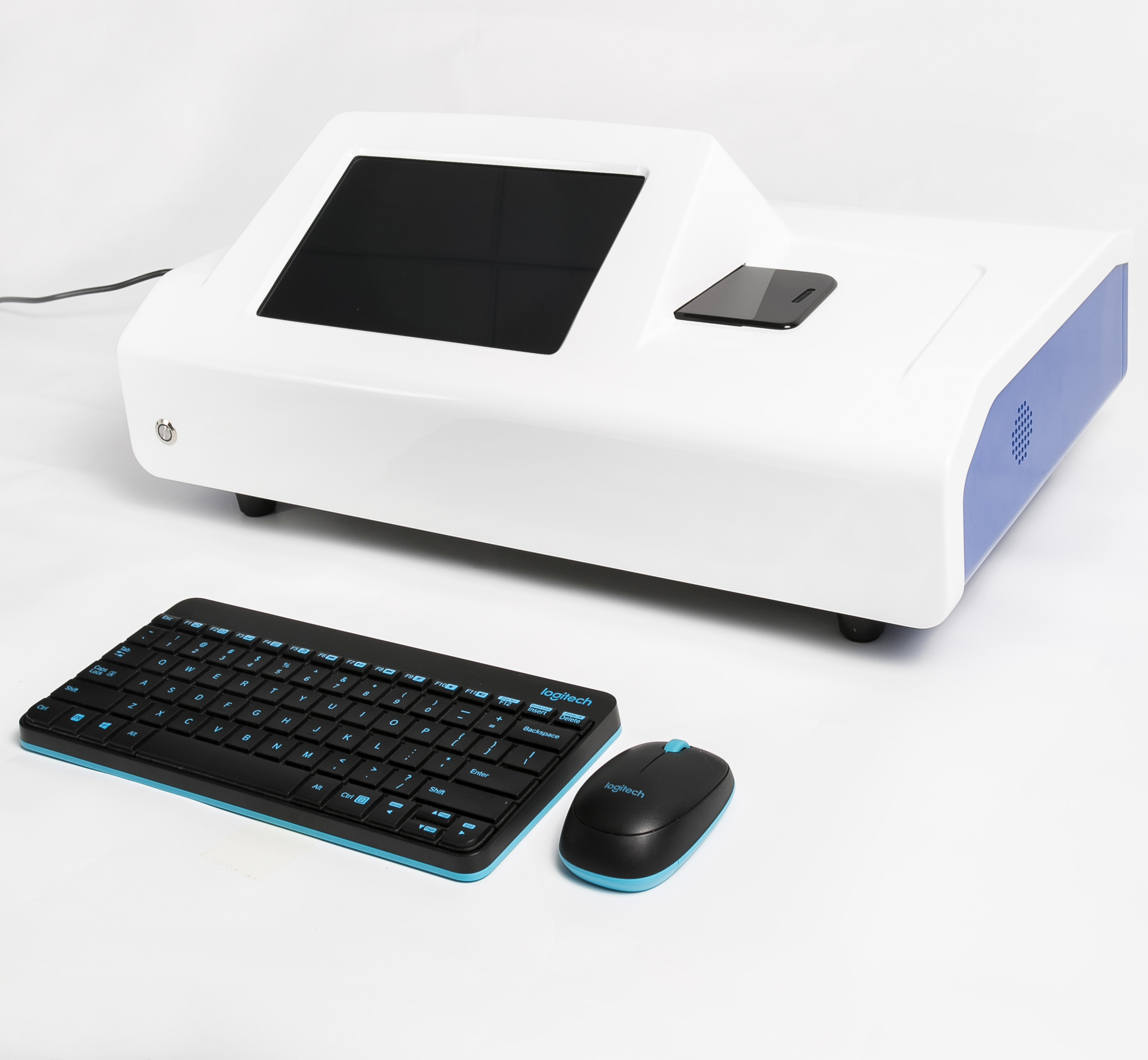

Near-Infrared Textile Fiber Component Analyzer
The Near-Infrared Textile Fiber Component Analyzer is designed for non-destructive, rapid, and accurate qualitative and quantitative analysis of textile fibers. It evaluates multiple component indicators simultaneously using near-infrared spectroscopy, without requiring sample pre-treatment.
The system uses a bottom-illumination optical path and diffuse reflection detection, allowing analysis of solid, powdered, or whole textile samples without contact. Chemometric models integrated in the software enable predictive analysis for qualitative identification and quantitative measurement of fiber composition.
Application
The analyzer is suitable for:
Qualitative and quantitative component analysis of textile fibers and fabrics
Research and development of textile materials
Quality control in textile production
Environmental-friendly and resource-saving testing in laboratories
It can analyze multiple textile types including natural fibers, synthetic fibers, and blends in both solid and powdered forms.
Standards
Compliance with general near-infrared spectroscopy testing principles and textile testing requirements
Parameters
| Parameter | Specification |
|---|---|
| Wavelength Range | 1000 – 2500 nm |
| Resolution | 1 nm, 2 nm, 4 nm, 8 nm, 16 nm (adjustable) |
| Wavelength Accuracy | ≤ 0.5 nm |
| Wavelength Repeatability | ≤ 0.04 nm |
| Stray Light | < 0.1% |
| Signal-to-Noise Ratio | 3000:1 |
| Analysis Time | 22 seconds per measurement |
| Detection Mode | Simultaneous qualitative and quantitative analysis |
| Spectroscopic Principle | Acousto-optic tunable filter (AOTF), no mechanical vibration components, bottom-illumination optical path, non-contact design, automatic calibration |
| Detector | InGaAs high-sensitivity indium gallium arsenide detector, noise level < 5E-5 |
| Light Source | 5V, 5W, lifespan > 10,000 hours, easy replacement |
| Working Mode | Diffuse reflection, non-contact, bottom illumination |
| Sample Cup | Rotatable design, compatible with powdered and whole samples |
| Operation System | Built-in computer, WIN7 OS, 4G memory, 64G SSD, USB interface, wireless networking |
| Data Software | Integrated chemometric modeling and analysis software, free lifetime upgrades, hardware control and self-diagnosis |
| Working Environment | Temperature: 5°C – 35°C, Humidity: 5% – 85% |
| Product Dimensions | 280 × 220 × 210 mm (L × W × H) |
| Product Weight | 6 kg |
Features
Non-destructive testing with near-infrared light, preserving sample integrity
High-speed scanning for millisecond-level spectrum acquisition
Resource-efficient, requiring no consumables
Environmental-friendly analysis avoiding chemical reagents
Bottom-illumination optical path and non-contact diffuse reflection design
Rotatable sample cup for improved representativeness and accuracy
High-sensitivity InGaAs detector ensures precise spectral measurement
Stable and vibration-free spectrometer using AOTF technology
Built-in computer with USB and wireless network for data storage, remote control, and instrument monitoring
Integrated chemometric modeling software for qualitative and quantitative analysis with automated calibration
Accessories
Rotatable sample cup
Standard calibration materials
USB and networking cables
Software installation media
Test Procedures
Place the textile sample into the rotatable sample cup.
Start the analyzer and select the measurement mode (qualitative, quantitative, or both).
The AOTF spectrometer irradiates the sample and collects near-infrared spectra.
The software processes spectral data using chemometric models to provide quantitative and qualitative results.
Save or export the measurement data as required.
Maintenance Information
Clean the optical path and sample cup regularly to avoid dust interference.
Check the light source for stability and replace if necessary.
Calibrate the system periodically using standard calibration materials.
Ensure the working environment meets temperature and humidity requirements.
FAQ
(1) What is this product?
It is a near-infrared spectroscopy analyzer for rapid, non-destructive qualitative and quantitative analysis of textile fibers.
(2) What is this product used for?
It is used to determine fiber composition, analyze multiple components simultaneously, and support R&D, production quality control, and textile material verification.
(3) Why is this product important?
It provides high-speed, non-destructive, and resource-efficient analysis, saving labor and reducing costs while maintaining accurate and reliable results.
(4) What industries is this product suitable for?
Textile manufacturing, fiber R&D, quality control laboratories, environmental-friendly textile analysis, and academic research institutions.
(5) What types of this product are available?
The standard configuration includes diffuse reflection analysis, rotatable sample cup, integrated chemometric software, built-in computer, and USB/wireless networking capability.
