Geo-synthetics thickness gauge

Standard
- GB/T 13761.1-2009 (Chinese standard for geosynthetic thickness measurement)
- ISO 9863-1:2005 (International standard for geosynthetic thickness determination)
- ASTM D5199-2001 (Standard test method for measuring the nominal thickness of geosynthetics)
- JTG E50 T1112-2006 (Chinese transportation industry standard)
- SL/T 235-5-2012 (Chinese water conservancy industry standard)
Product Advantages
- Multi-Pressure Precision
- Adjustable pressure modes: 2kPa, 20kPa, and 200kPa (±1% accuracy).
- 0.001mm resolution: Captures minute thickness variations in geotextiles.
- Corrosion-Resistant Design
- Anodized aluminum frame: Withstands harsh lab environments.
- Stainless steel presser foot: Resists chemical degradation.
- User-Centric Operation
- Digital display: Real-time thickness readings with 0.001mm precision.
- Quick-calibration system: Zeroing in <10 seconds.
- Industrial Durability
- Rigid construction: 40kg weight minimizes vibration interference.
- Self-leveling base: Ensures parallelism between presser foot and reference plate.
- Compliance & Safety
- Overload protection: Alerts if pressure exceeds 220kPa.
- CE certification: Meets EU safety directives.
Product Features
Testing System
- Presser Foot:
- 25cm² circular contact area: Mimics ASTM/ISO specifications.
- Non-rotating design: Eliminates shear forces during testing.
- Pressure Application:
- Mechanical weight system: 2kPa, 20kPa, and 200kPa settings.
- Precision springs: Maintains pressure within ±1% over 24 hours.
Measurement & Control
- Dial Gauge:
- 12mm range: 0.001mm resolution (NIST-traceable).
- Digital encoder: Converts analog readings to USB/Bluetooth data.
- Leveling System:
- Adjustable feet: ±2° tilt compensation.
- Bubble vial: Visual confirmation of horizontal alignment.
Safety & Convenience
- Emergency Release: Instantly lifts presser foot.
- Dust Cover: Protects optics during storage.
Technical Parameters
Specification | Details |
---|---|
Pressure Modes | 2kPa, 20kPa, 200kPa (±1% accuracy) |
Measuring Range | 0.001–12mm (±0.001mm resolution) |
Presser Foot Area | 25cm² (circular, non-rotating) |
Leveling Adjustment | ±2° tilt compensation |
Power Supply | Battery-operated (4xAA included) |
Footprint | 600mm (L) x 300mm (W) x 400mm (H) |
Weight | 40kg (net) / 45kg (with accessories) |
Accessories Included
- Weights Set – 2kPa, 20kPa, and 200kPa calibration masses.
- Dial Gauge – 0.001mm resolution with NIST certificate.
- Leveling Screws – 4-point adjustment for base stability.
- Dust Cover – Protective acrylic shield.
- Software License – Lifetime access to GeoThick Pro (cloud-connected with API for integration with QMS systems).
- Installation & Training – On-site setup by certified engineers + 8hrs virtual training for operators.
- Documentation – Multilingual user manual and ISO 9863-1:2005 compliance guide.

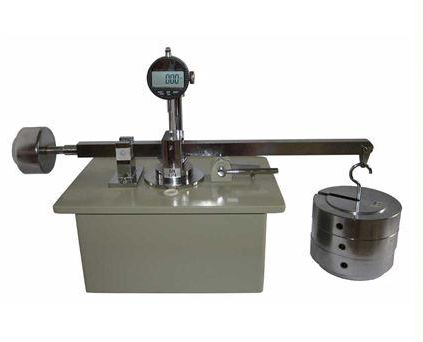

Geo-synthetics thickness gauge Display:
