Automotive Wire Abrasion Tester - Technical Specification

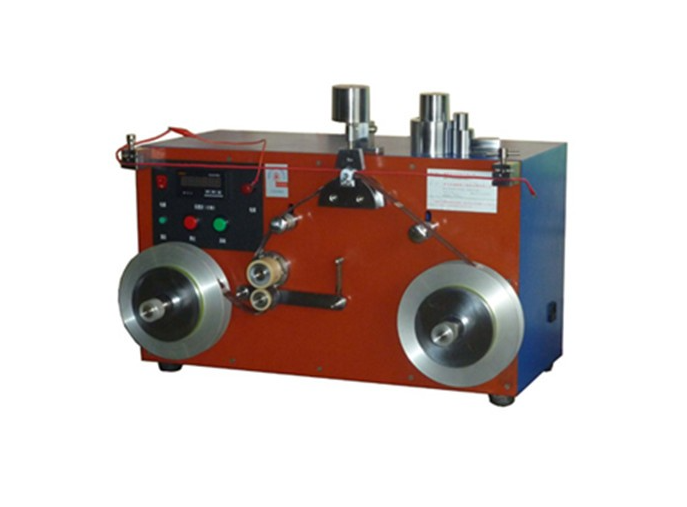

Automotive Wire Abrasion Testing Machine


* Actual parameters should be verified with physical product

Compliance Standards

  • SAE J1128 (Low Voltage Battery Cable)
  • ISO 19642 (Road vehicles - Automotive cables)
  • LV 112-3 (Mercedes-Benz Standard)
  • VW 60306 (Volkswagen Test Specification)
  • Ford WSS-M1P41-A2

Core Innovation

Fifth-generation pneumatic loading system with 3D movement simulation capability, achieving ±0.2N force control precision

Technical Parameters

ParameterSpecification
Test ChannelsSimultaneous 6-channel testing
Load Range1N-200N (programmable)
Stroke LengthMax. 500mm (auto-calibration)
Frequency10-100 cycles/min
Abrasion MethodReciprocating/rotary composite motion
Data Sampling4000Hz high-speed acquisition
Power Supply3PH 480VAC ±10%, 60Hz
Air Pressure6-8 bar (integrated regulator)

Key Features

  • Intelligent wear depth detection using laser triangulation (1μm resolution)
  • Automated test sequence with 50 preset programs
  • Fail-safe emergency stop system (mechanical + electronic)
  • MIL-STD-810G compliant shock/vibration resistance
  • Real-time IR thermal imaging (optional)

Monitoring System

MeasurementMethodAccuracy
Insulation Resistance100-1000V DC±1.5%
Conductor Resistance4-wire Kelvin±0.5%
TemperatureType K thermocouple±2℃

Standard Configuration

  • Multifunction test head (integrated 3D force sensor)
  • Abrasion wheel set (Ø50/100/150mm) - 3 hardness levels
  • Wire Guide System with diameter adapters (0.5-35mm)
  • TestSoft Pro analysis suite

Optional Modules

  • Environmental Chamber (-40℃ to +150℃)
  • Abrasion Particle Analysis System
  • Automated Test Report Generator
