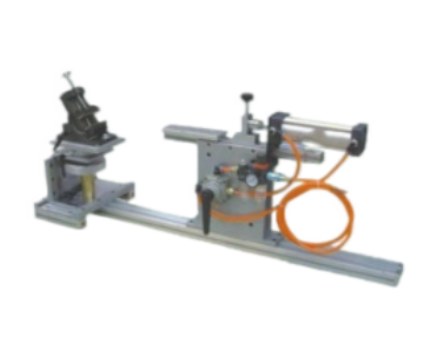

TTF tensile testing machine

TTF tensile testing machine

Skype / Email



Product Introduction:

The TTF tensile testing machine is designed to provide high and stable tensile forces in tensile tests. Mostly for toys

Destructive tension test; The cylinder provides power; The clamp of the specimen can be adjusted to any suitable position.

Parameter theoretical maximum push/pull 188/168 Kgf

Maximum travel 150 mm

Speed 50-800 mm/s

Volume 1620×320×421 mm

It weighs about 81kg

1. TTF test method:

Applicable: All McDonald's products required for TTF testing.

2. Purpose:

Collect and analyze data to assess process capability and deviation of the production process to further

To evaluate the safety and reliability of the product.

equipment

3.1TTF test machine

4. Test conditions:

4.1 Room temperature: 23±2℃, humidity 20% —— 70%.

4.2TTF test machine travel speed: 0.7±0.1in/sec.

4.3TTF test engine air pressure: 60±10psi (4.2±0.7kgf/cm)

5 TTF test operation procedure:

5.1 Check/adjust the test environment to meet the requirements (room temperature: 23±2℃; Humidity 20% —— 70%)。

5.2 Check whether all components on the TTF machine are in good condition and connected/secured.

5.3 Open the air pressure pump and adjust the air pressure valve of the air pressure pump to make the air pressure of the air pressure pump meet the requirements (60±10psi)。

5.4 Adjust the pressure valve of TTF machine to make the pressure reach the requirement (60±10psi)。

5.5 Start the TTF machine and check whether the TTF machine is normal (such as whether the taxi is smooth, etc.)。

5.6 Install the tension pound and adjust the intake valve on the pneumatic machine of the TTF machine to make its travel speed reach the requirement (0.7±0.1in/sec)。

5.7 Position adjustment of TTF machine.

5.8 After alignment adjustment, secure the position.

5.9 Test fixture specified in the force bitmap /TTF test demonstration diagram.

5.10 The sample process must be placed in the required environment (room temperature 23±2℃, humidity 20% —— 70%) for 4 hours before it can be carried out.

5.11 Performing a Test.

5.12 Record the test result After the Test.
