Helmets for Designated Protection Areas Tester
Standard
- GB 811-2010 (China’s national standard for helmet vision zones and protection areas)
- ISO 10256-4 (Headgear vision requirements for industrial and sports helmets)
- EN 166 (Personal eye protection – Field of view specifications)
- ANSI Z89.1 (American National Standard for Industrial Head Protection)
Product Advantages
- Infrared Precision Marking
- Sub-millimeter accuracy: Projects laser-guided test lines and points (0.1mm resolution).
- Multi-standard compliance: Adapts to GB 811, ISO 10256-4, and EN 166 vision zone requirements.
- Universal Adjustability
- 360° rotation: Aluminum alloy bracket with ±90° tilt for helmet angle customization.
- Quick-lock system: Fixes vision zones in <5 seconds for repetitive testing.
- R&D Optimization
- Field of View Simulation: Overlays vision zones on 3D helmet models (STL/OBJ import supported).
- Tolerance Mapping: Highlights non-compliant areas in real time (GB 811 §5.3).
- Durability & Portability
- Aircraft-grade aluminum: Lightweight (8kg) yet rigid frame for lab or field use.
- IP54 enclosure: Withstands dust and splashes during R&D prototyping.
- User-Centric Design
- 7" touchscreen: Intuitive interface with multi-language support (EN/DE/ZH/ES/FR).
- Bluetooth connectivity: Syncs with CAD software for design iteration.
Product Features
Infrared Projection System
- Laser Module:
- Class 2 infrared emitter: Safe for human exposure (1mW max output).
- 520nm wavelength: Visible under ambient lighting conditions.
- Bracket Assembly:
- Adjustable arm: 300–600mm extension, ±90° tilt, 360° rotation.
- Quick-release clamp: Fits helmet diameters from 200mm (child) to 300mm (industrial).
Vision Zone Analysis
- Software Suite:
- Field of View Calculator: Generates ISO 10256-4-compliant reports.
- 3D Overlay Tool: Projects vision zones onto helmet CAD models.
Calibration Tools
- Precision Level: Ensures bracket alignment within 0.05°.
- Laser Alignment Target: Verifies projection accuracy at 1m and 2m distances.
Technical Parameters
| Specification | Details |
|---|---|
| Infrared Wavelength | 520nm (Class 2 laser) |
| Bracket Adjustability | 360° rotation, ±90° tilt, 300–600mm extension |
| Helmet Compatibility | 200–300mm diameter (child to industrial) |
| Projection Accuracy | ±0.1mm at 1m distance |
| Power Requirements | 100–240V AC, 50/60Hz, 50W |
| Dimensions | 400mm (L) x 300mm (W) x 800mm (H) |
| Weight | 8kg (net) / 10kg (with accessories) |
Accessories Included
- Aluminum Bracket Kit – Adjustable arm with quick-release clamp.
- Infrared Emitter – Class 2 laser module with 520nm wavelength.
- Calibration Tools – Precision level and laser alignment target.
- Software License – Lifetime access to VisionZone Pro (cloud-connected with API for integration with CAD/PLM systems).
- Documentation – Multilingual user manual and GB 811-2010 compliance guide.

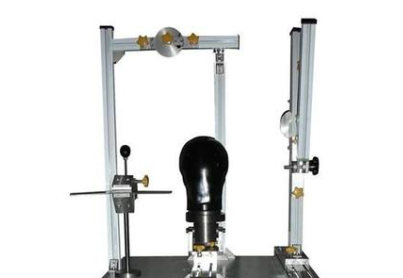

Helmets for Designated Protection Areas Testing Equipment Display:
