Safety Helmets Extremely High - Temperature Pre - treatment Chamber
Standard
GB/T 2812-2019 (China’s national standard for helmet thermal pre-treatment and dimensional stability)
- ISO 13832-2 (Protective clothing – Test methods for resistance to high-temperature environments)
- EN 397 (Industrial safety helmets – Requirements for thermal resistance)
Product Advantages
- Precision Thermal Engineering
- Uniform Heat Distribution: 150±5°C standard temperature with ±2°C gradient across 4 helmets.
- Rapid Heating: Reaches 200°C in <45 minutes (10°C/min ramp rate).
- Multi-Sample Efficiency
- 4-Helmet Capacity: Simultaneously pre-treats samples for accelerated testing.
- Independent Control: Adjusts time/temperature per helmet position.
- Biofidelic Headform Design
- Aluminum Alloy Molds: Hollow 1.5mm-thick headforms with 50±2°C internal temperature.
- Anatomical Accuracy: Replicates human head thermal conductivity (0.48 W/m·K).
- Safety & Compliance
- Over-temperature protection: Auto-shutdown at 210°C.
- Audit-ready reporting: Generates GB/T 2812-2019-compliant certificates.
- User-Centric Operation
- 7" Touchscreen: Intuitive interface with multi-language support (EN/DE/ZH/ES/FR).
- Quick-swap headforms: Fits EN 960 S/M/L sizes in seconds.
Product Features
Thermal System
- Heating Chamber:
- Stainless Steel Interior: Corrosion-resistant with 200°C max rating.
- Forced Convection: Circulates air at 2m/s for uniform heating.
- Headform Assembly:
- Hollow Aluminum Molds: 1.5mm wall thickness, 50±2°C internal temperature.
- Thermocouple Ports: Measures core temperature at <40mm from midpoint.
Control System
- PID Temperature Controller: ±1°C stability at 150°C.
- Programmable Timer: 0–99 minutes (60±2 minutes standard).
Safety Systems
- Overheat Alarm: Audible/visual alerts at 200°C.
- Emergency Vent: Rapid chamber depressurization in <3 seconds.
Data Management
- Onboard Software:
- Batch Logging: Tracks 10,000+ tests with helmet serial numbers.
- Export Formats: CSV/PDF reports with thermal cycle graphs.
Technical Parameters
| Specification | Details |
|---|---|
| Temperature Range | Ambient – 200°C (150±5°C standard) |
| Heating Rate | 10°C/min (ambient to 200°C) |
| Sample Capacity | 1–4 helmets (EN 960 S/M/L headforms) |
| Headform Material | Aluminum alloy (hollow, 1.5mm wall) |
| Thermocouple Accuracy | ±0.5°C (Type K) |
| Power Requirements | 220V/50Hz, 3kW (single-phase) |
| Footprint | 870mm (L) x 710mm (W) x 1,100mm (H) |
| Weight | 120kg (net) / 150kg (with accessories) |
Accessories Included
- Headform Kit – EN 960 S/M/L sizes with integrated thermocouples.
- Calibration Tools – NIST-traceable temperature calibrator and gauge blocks.
- Software License – Lifetime access to ThermalPrep Pro (cloud-connected with API for integration with QMS systems).
- Installation & Training – On-site setup by certified engineers + 8hrs virtual training for operators.
- Documentation – Multilingual user manual and GB/T 2812-2019 compliance guide.

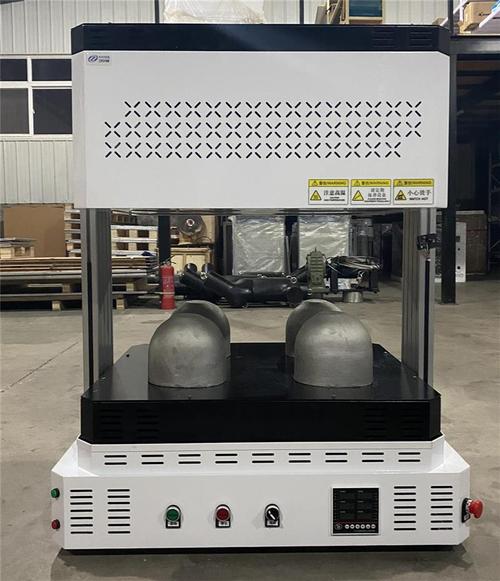

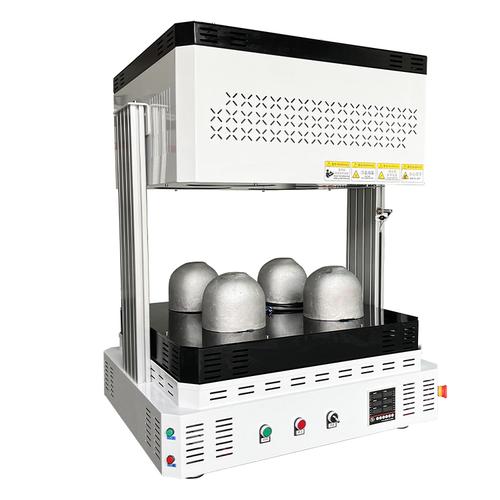

Safety Helmets Extremely High - Temperature Pre - treatment Chamber Display:
