Safety Helmets Acceleration Impact and Penetration Tester
Standard
- GB/T 2812 (China’s national standard for helmet impact and penetration resistance testing)
- ISO 6220-2 (Road vehicles – Restraint systems – Energy absorption test methods)
- EN 1078 (Helmets for cyclists and skateboarders – Performance requirements)
- ANSI Z90.1 (Protective Headwear Standard for Industrial Workers)
Product Advantages
- Dual-Testing Versatility
- Impact & Penetration Modes: Quick-change fixtures for G-force acceleration and sharp-object penetration tests.
- Universal Compatibility: Tests industrial, cycling, motorcycle, and climbing helmets (XS–XXL sizes).
- Ultra-Precision Sensors
- 20,000N force sensor: 5kHz sampling rate captures transient forces (0.1N resolution).
- Accelerometer Array: Triaxial sensors measure peak G-forces (±0.5% accuracy).
- Advanced Data Analytics
- Real-time FFT Analysis: Identifies resonance frequencies and structural weaknesses.
- Automated Reporting: Generates ISO/GB-compliant test certificates with pass/fail indicators.
- Industrial-Grade Durability
- Reinforced Concrete Base: 500kg mass for zero vibration during 4.2m drop tests.
- Stainless Steel Guide Rails: Self-lubricating bearings ensure friction-free hammer motion.
- User-Centric Safety
- Light Curtain Safety System: Halts tests if objects enter the drop zone.
- Emergency Ejection: Rapid hammer retraction during malfunctions.
Product Features
Impact Testing
- Drop Mechanism:
- Electromagnetic Release: Ensures repeatable 1,000±5mm drop height.
- 5.0kg Stainless Steel Hammer: Hemispherical head (R50±1mm) for standardized impacts.
- Force/Acceleration Sensors:
- Piezoelectric Load Cell: 20,000N capacity, 0.1% FS accuracy.
- Triaxial Accelerometer: 10,000g range, ±0.5% accuracy.
Penetration Testing
- Penetration Assembly:
- 3.0kg Conical Hammer: 60°±0.5° tip angle, 45–50 HRC hardness.
- 1,000mm Drop Height: Simulates sharp-object impacts at 18.7 km/h.
- Safety Interlock:
- Auto-Retract System: Prevents secondary impacts after penetration.
Universal Compatibility
- Adjustable Clamping: Fits helmets from 52cm (XS) to 64cm (XXL).
- Tilt Mechanism: 0–90° tilt for oblique impact simulation.
Technical Parameters
| Specification | Impact Test | Penetration Test |
|---|---|---|
| Drop Height | 1,000±5mm | 1,000±5mm |
| Hammer Weight | 5.0±0.1kg | 3.0±0.05kg |
| Tip Geometry | Hemisphere (R50±1mm) | Cone (60°±0.5°, 40mm min.) |
| Force Sensor | 20,000N, 5kHz sampling | N/A (mechanical stop) |
| Accelerometer | Triaxial (10,000g) | N/A |
| Base Mass | 500kg (reinforced concrete) | 500kg (reinforced concrete) |
| Frame Height | 4,200mm | 4,200mm |
| Power Requirements | 220V/110V AC, 50/60Hz, 1kW |
Accessories Included
- Headform Kit – EN 960 S/M/L sizes with polyurethane skin coating.
- Hammer Set – Impact (5.0kg) and penetration (3.0kg) hammers with storage case.
- Calibration Tools – NIST-traceable force gauge, accelerometer calibrator, and Rockwell hardness tester.
- Safety Kit – Light curtain, energy-absorbing base mat, and emergency stop button.
- Software License – Lifetime access to HelmetDynamic Pro (cloud-connected with API for integration with QMS systems).
Installation & Training – On-site setup by certified engineers + 16hrs virtual training for operators.

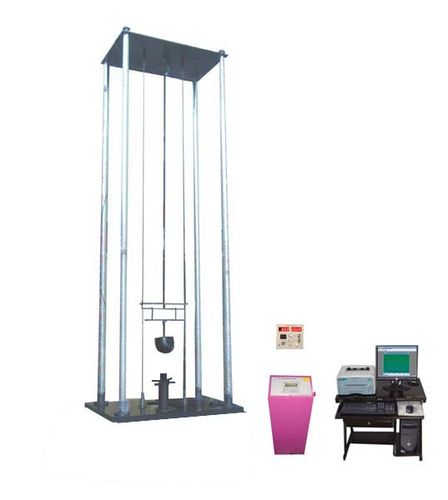

Safety Helmets Acceleration Impact and Penetration Tester Display:
