Safety Helmet Chin - Strap Strength Tester
Standard
- GB/T 2812-2006, GB/T 2812-XXXX, GB 2811-2019 (China’s national standards for helmet safety and chin-strap strength testing)
- ISO 10256 (Head and face protection for ice hockey goaltenders – Test methods for chin strap strength)
- EN 1384 (Helmets for equestrian activities – Requirements and test methods)
Product Advantages
- Precision Loading System
150N rapid loading: Reaches test load in under 1 minute (per GB/T 2812-XXXX).
- 20N/min ±2N/min controlled ramp: Simulates sustained force for dynamic durability testing.
- Anatomical Accuracy
- Biofidelic head model: 3D-printed cranium with articulating mandible (±0.1mm dimensional accuracy).
- Replaceable inserts: Adult (58cm) and child (54cm) head sizes for universal testing.
- Real-Time Data Visualization
- LED display: Live force readings with peak-hold function and overload alerts.
- Data logging: 10,000-point memory with timestamped CSV/PDF export.
- Industrial Durability
- Aerospace-grade aluminum frame: Corrosion-resistant finish with 10-year anti-rust warranty.
- IP54 enclosure: Withstands dust and splashes in lab environments.
- User-Centric Design
- Quick-release chin-strap clamps: Tool-free changes in under 30 seconds.
Multi-language interface: EN/DE/ZH/ES/FR support with tutorial overlays.
Product Features
- Loading Mechanism:
- Electro-hydraulic actuator: 0–2,000N force range with 0.1N resolution.
- Dual-mode control: Ramp-to-failure or sustained load testing (1–999 sec hold).
- Head Model:
- Articulating mandible: Simulates natural jaw movement during force application.
- Skin-like coating: Polyurethane elastomer for realistic strap interaction.
- Sensors:
- High-precision load cell: 0.1% FS accuracy (2,000N max).
- Strain gauge calibration: NIST-traceable to 0.05N resolution.
- Safety Features:
- Emergency stop, overload shutoff (2,200N max), and anti-tip base.
- Maintenance:
- Self-diagnostics: Actuator health monitoring and calibration reminders.
- Modular design: Field-replaceable load cell and head model.
Technical Parameters
| Specification | Details |
|---|---|
| Force Range | 0–2,000N (±0.1% FS accuracy) |
| Loading Rate | 20N/min ±2N/min (controlled ramp) |
| Rapid Load | 150N in <60 seconds |
| Head Sizes | Adult (58cm), Child (54cm) |
| Actuator Type | Electro-hydraulic (2,000N max) |
| Data Logging | 10,000 points with timestamp |
| Power Requirements | 100–240V AC, 50/60Hz, 300W |
| Dimensions | 600mm (L) x 400mm (W) x 800mm (H) |
| Weight | 45kg (net) / 55kg (with accessories) |
Accessories Included
- Head Model Kit – Adult (58cm) and child (54cm) 3D-printed crania with articulating mandibles.
- Calibration Set – NIST-traceable weights (50N/100N/200N) and strain gauge verifier.
- Chin-Strap Clamps – Quick-release fixtures for 25mm/50mm strap widths.
- Software License – Lifetime access to HelmetTest Pro (cloud-connected with API for integration with QMS systems).
- Installation & Training – On-site setup by certified engineers + 8hrs virtual training for operators

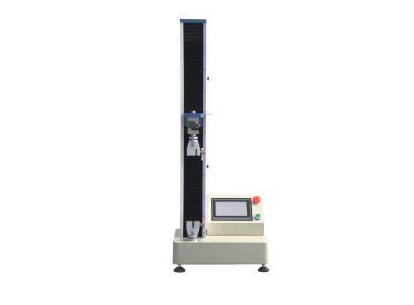

Safety Helmet Chin - Strap Strength Tester Display:
