Spring Torsion Fatigue Testing Machine
The Spring Torsion Fatigue Testing Machine (horizontal type) is an advanced automatic torsional fatigue testing instrument with digital display and counting functionality. It is specifically designed to evaluate the torsional fatigue life of torsion springs, spiral springs, elastic elements, and friction mechanisms.
Standard
JB/T 9370 (Chinese national standard for torsion testing machines)
JJG 269 (Chinese verification regulation for torsion testers)
ISO 12106 (International standard for metallic materials—torsional fatigue testing)
ASTM E143 (Standard test method for torsional fatigue of metallic materials)
Advantages
Automated Precision
Digital control: Real-time display of torque, angle, and cycle count.
Absolute rotary encoder: Eliminates cumulative error for ±0.1° accuracy.
User-Defined Flexibility
Adjustable parameters: Torsion angle (0–300°), frequency (0–5Hz), and direction (clockwise/counterclockwise).
Preset cycles: Auto-stop at 999,999,999 cycles with buzzer alert.
Quiet Operation
50dB noise level: Suitable for lab environments.
Vibration damping: Reduces mechanical resonance during high-cycle testing.
Data Integrity
Automatic storage: Resumes tests after power interruptions.
Multi-unit display: Torque (Nm/lb-ft) and frequency (Hz/RPM) shown simultaneously.
Industrial Durability
Alloy steel frame: Rigid construction with 10-year lifespan.
Sealed bearings: Maintenance-free operation for 20,000+ hours.
Technical Parameters
| Specification | Details |
|---|---|
| Torque Range | 10/20/50Nm (auto-switching) |
| Frequency Range | 0–5Hz (0.1Hz resolution) |
| Torsion Angle | 0–300° (±0.1° adjustable) |
| Cycle Capacity | 999,999,999 (auto-stop with buzzer) |
| Power Requirements | AC 220V±10%, 50Hz, 800W |
| Noise Level | ≤50dB(A) |
| Footprint | 600mm (L) x 500mm (W) x 1,200mm (H) |
| Weight | 85kg (net) / 100kg (with accessories) |
Features
Testing System
Torque Application:
300° adjustable angle: ±0.1° resolution via servo motor.
10/20/50Nm ranges: Auto-switching for lightweight to heavy-duty springs.
Control Panel:
7" touchscreen: Intuitive interface with EN/DE/ZH/ES/FR language support.
Programmable presets: Save up to 10 test profiles for rapid recall.
Safety & Convenience
Emergency Stop: Instantly deactivates motor and clamps.
Overload Protection: Halts testing if torque exceeds 110% of range.
Data Acquisition
Sensors:
Torque transducer: ±0.5% accuracy (NIST-traceable).
Angular encoder: 16-bit resolution for precise angle control.
Software:
TorsionTest Pro: Exports CSV/PDF reports with cycle-to-failure data.
Remote access: Monitor tests via LAN/Wi-Fi connection.
Accessories
Fixture Kit – Collets for 3–50mm diameter springs.
Calibration Tools – NIST-traceable torque wrench and angle gauge.
Software License – Lifetime access to TorsionTest Pro (cloud-connected with API for integration with QMS systems).
Installation & Training – On-site setup by certified engineers + 16hrs virtual training for operators.
Documentation – Multilingual user manual and JB/T 9370 compliance guide.

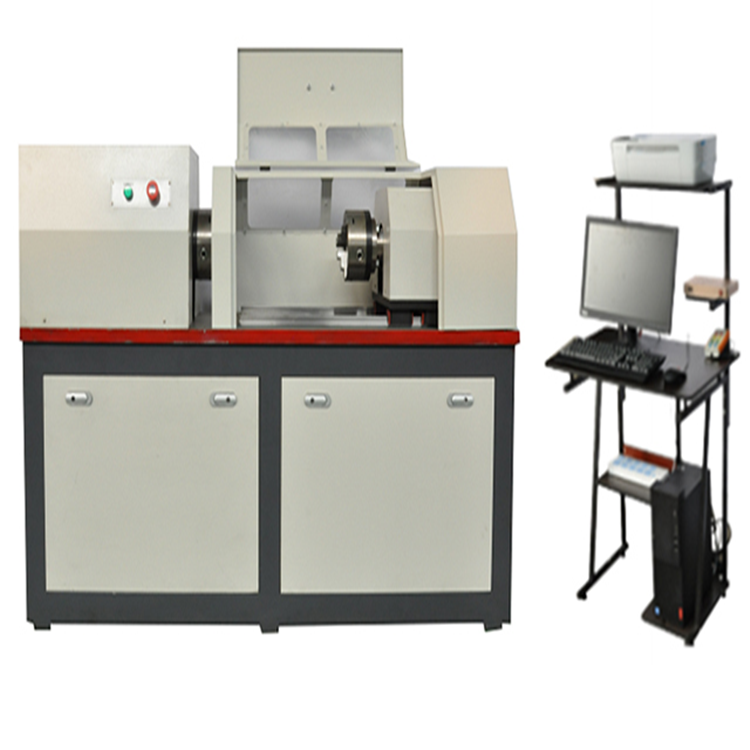

Spring torsion fatigue testing machine Display:
