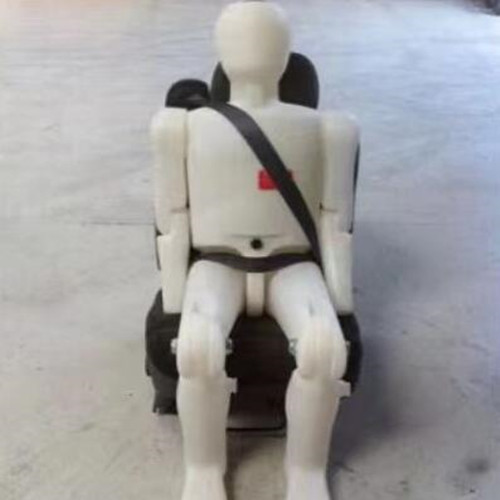

Water injection counterweight dummy

Product Introduction

　　This counterweight dummy can be filled with water, the torso and the bottom are separated,

independently filled with water or solid filler, and can be adjusted to the Angle of the backrest to

fit the seat, child seat and other operating tests of the car.

Part series

　　1. Trunk

　　2. Base part

　　3. Bottom shaft fixing screw

　　4. Quality marking

　　5. Sensor applications

　　6. Install and fix the accessories

　　7. Accessories are installed and fixed

Mass distribution

　　1. Bottom: empty weight 10kg, loading: 38kg

　　2. Trunk: empty weight 4kg, load: 39kg

Renault special - German quality

　　The body part is designed with a seat belt fixed point;

　　Natural colors can be filled with water, sand, or other solid materials.

　　Product displays can be used in cars and playground facilities （with large filler ports）

　　And can be used in simulated weight and body type tests, including vehicle carrying, braking,

 acceleration, tire traction, safety lacing, seat wear, and accident replay experiments.

Advantages

　　Light weight, easy to handle;

　　The maximum 17G acceleration has been tested;

　　Reusable;

　　Suitable for standard motor vehicle seats;

　　Designed with grooves for fastening seatbelts.

Product features

　　Water two scales can choose the weight;

　　Equipped with 2" filler port and plug head, and 1 "drain port, can be customized specific

drain/valve lifting ring port is available.
