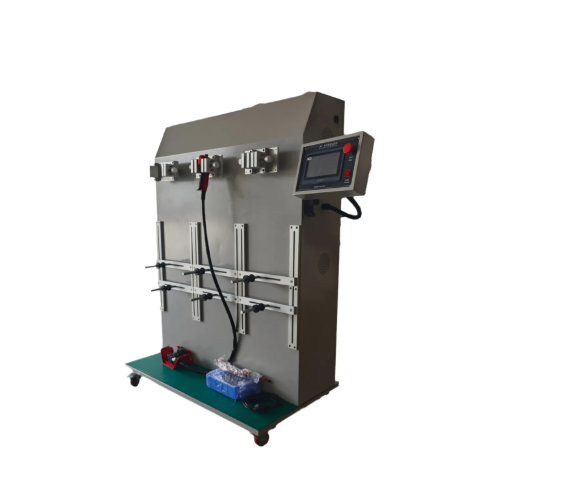

Automobile wire cyclic bending testing machine
Automotive Wire Cyclic Bending Testing Machine
Compliance Standards
ISO 6722-1 SAE J1128 IEC 62196-2
Key Advantages
- ✔️ High-precision servo control (±0.5° angle accuracy)
- ✔️ 10" multilingual touchscreen interface
- ✔️ Modular fixture system for 0.5-50mm wires
- ✔️ CE certified safety protection system
Technical Specifications
| Parameter | Specification |
|---|---|
| Testing Speed | Up to 60 cycles/minute |
| Bending Angle Range | 0-360° continuous adjustment |
| Axial Load Capacity | 0-500N (2000N optional) |
Included Accessories
Standard Fixtures
3 V-groove/roller sets (5/10/20mm)
Calibration Kit
50N/100N/200N calibration weights
Typical Applications
- EV charging cable durability testing
- Automotive harness fatigue analysis
- Consumer electronics bend validation
- Quality certification testing
