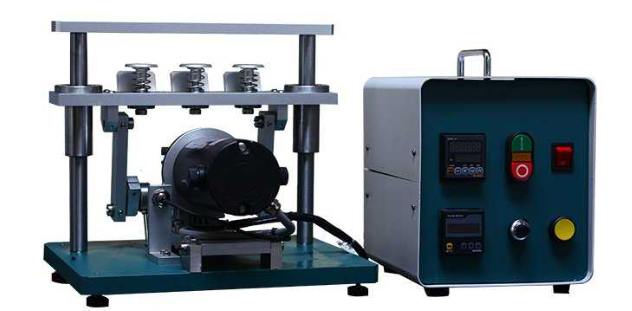

Bending-Folding-Stiffness Testers

Bending-Folding-Stiffness Testers

Product Information:

Bending-Folding-Stiffness Testers determines the breakdown resistance of leather, vinyl coated fabric, synthetics, rubberoids, paper, and the like. Product applications which call for flexing and folding may cause your material to split, crack, craze, or separate at the seam. To predict these types of degradation, it is important to simulate the mechanical action taking place in your product's service life environment.

The flexing action replicates the physical stresses normally exerted on fabrics and other materials in various automotive, commercial and industrial environments, allowing you to predict the durability of the materials when assembled in their final form.

Test specimens are easily clamped into one of four sample positions. Three of these positions perform flex testing. The sample is held under a uniform tension of the while moving one end of while moving one end of the sample through a given distance each side of the perpendicular.

This action creates flexural stresses and strain on the sample, which simulates normal wear and causes the material to break down. A change in length of the sample gives a further indication of the material's breakdown.

Standards:

Chrysler LP-463LB-9-01, Chrysler LP-463KB-13-01, Chrysler LP-463KB-10-01, IFAI J1531, Commercial Standard CS-273-65?


Applications:

The Low Temperature Bally Resistance Flexing Tester was designed for the determination of the mechanical stability of anchorage of the coating materials to the backing fabric, due to flexing and folding.

Optional digital cycle counter is available.

Chrysler Flex Fold Tester Technical Parameters:

1.Tabletop design.

2.Capacity for testing three flex specimens simultaneously.

3.One fold sample capacity.

4.Each specimen holders may be tensioned individually.

5.Stroke Length: 2.75 inch.

6.Clamp separation: 152mm (6inches).

7.Stroke Rate: 35 CPM.

8.Tension Load: 8 lbs. Adjustable.

9.Pressure plate load: 641N (12lbf) when closed.

10.Specimen size, flex: 76×203mm(3×8inches).

11.Specimen size, fold: 129×129mm (5×5inches).

12.Electronic cycle counter with reset.

13.Electronic counter: 6 digit.

14.External dimension: 36×12×22inches (L×D×H).

Low Temperature Bally Resistance Flexing Tester





Note:QINSUN always been committed to innovation and improve product performance and functionality, based on the reasons, the product specifications will be changed accordingly. The above without prior notice, the Company reserves the right to amend the final.
