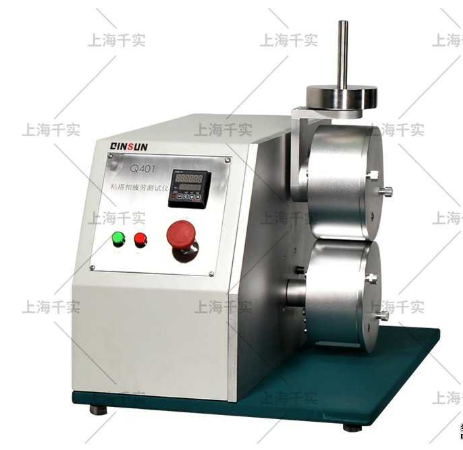

Magic tape fatigue testing machine

Magic tape fatigue testing machine

Skype / Email



Product Information:

Velcro Fatigue Tester is designed for opening and closing the hook and loop fasteners, A hook and loop fastener is repeatedly opened and closed for a specified number, and then is rolled by a roller to the hook side and the loop side to stick closely so as to determine the adhesive force and strength. This machine has a memory function. You can adjust the force applied to the specimen by adjusting the counterweight and load.

Standards:

DIN-3415、SATRA TM123、ISO 22776、GB/T 3903.20、GB/T 3903.21、GB/T 23315-2009

This magic tape fatigue tester manufacturer is suitable for all kinds of touch and close fasteners test. Touch and close fasteners repeatedly shear and peel for a certain number of times, rolling sample with the weight of its own to receive the uniform fit. Then, determine the adhesion and part of the bonding strength. This tester has a memory function; Adjust the requirement pressure between the specimen by adjusting the balance blocks and weights.

Technical Parameters:

1. Wheel diameter: the previous round φ162.5mm, the next round φ160mm;
2. Wheel width: 70mm;
3. Rolling speed: 60rpm / min;
4. Fixture slot: width 4mm, length 55 ± 2mm;
5. Reverse time: 30s reverse;
6. Tests: 5000 times;
7. Load: 5kg;
8. Counter: Counter: LCD liquid crystal display, 0-999999;
9.HP: AC1 / 8HP dual-frequency motor;
10. Instrument material: stainless steel;
11. Surface treatment: painting;
12. Volume: 70 × 47 × 60cm;
13. Weight: 51kg;
14. Power: AC220V, 50HZ, 5A.

adhesive button fatigue tester


Note:QINSUN is very in place for textile testing and quality control,we have our own textile testing lab. Our textile testing equipment and testing methods are in the leading position in the industry. We have passed the textile testing certification and iso textile testing standards issued by a number of testing,We can provide textile testing equipment pdf manual. Sufficient inventory, big discounts, limited time promotion, Order now!
