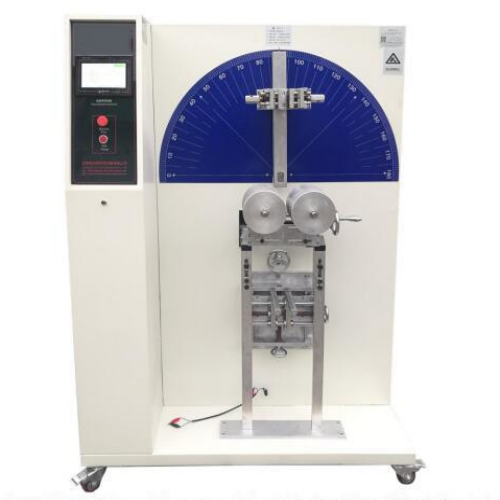

Wire bending tester

Product Introduction:

Wire bending tester meets JIS-C-3005 test standard. The sample is inserted through the specified round hole according to thickness, and fixed in the fixture with adjusted spacing. After rotating the wheel 200 times, the degree of damage, cracking, crack and conductor strand breakage rate are checked. It has the characteristics of simple operation and excellent performance, can be positive and negative operation, and can be set to automatically stop after reaching the number of times.

Technical parameters:

1, fixture action: manual

2, fixture spacing: 0——500mm adjustable

3, the total number of times: 0-999999 times can be manually set

4. Test rate: 20 times/min

5, off-center: 50, 75, 100, 150mm

6, the diameter of the parallel section of the sample: φ4mm, φ6mm, φ8mm, φ10mm, φ12mm,φ15mm, φ18mm, φ20mm
