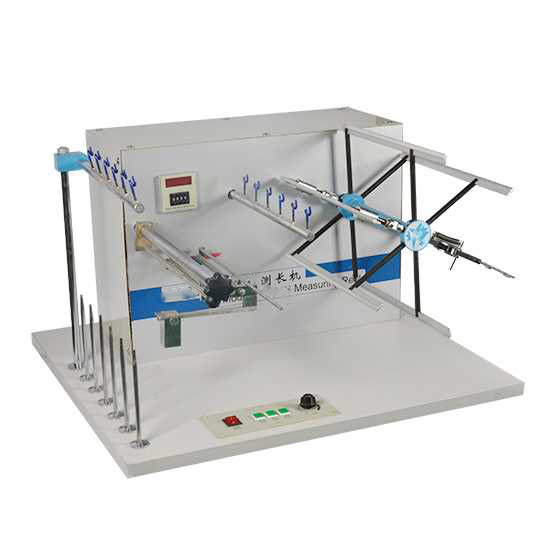

Yarn length measuring instrument

Yarn length measuring instrument
Wrap Reel, to produce skeins of yarn of a pre-determined length and number of turns for count and strength testing. Yarn Length Measuring Device complies with ISO 2060, ASTM D1907/2260, BS 2010, etc. Wrap reel yarn testing will be more accurate if you use our Wrap Reel.

Standards:
ISO 2060,ASTM D1907,ASTM 2260,DIN 53830,BS 2010,DIN 53830,GB/T 6838,GB/T 14343,GB/T 4743

Application:
Wrap Reel Machine, to produce skeins of yarn of a pre-determined length and number of turns for count and strength testing. 1 Metre, 36″ or 54″ circumference collapsible swift (specify). Wrap reel Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.

Specifications:
Circumference of winch:1000 ±1 mm / 54 ± 1/16 inch
Number of wrap:1 ~ 9,999 adjustable
Pre-tension:2 ~ 100cn
Traveling reciprocating distance:35 mm
Spacing of spindles:60 mm
Reel speed:20 ~ 280r/min (variable)

Dimensions:
Weight:105 kg
Power:220/110 V,50/60 Hz
Width: 780 mm
Depth: 660 mm

Wrap Reel
Note:QINSUN always been committed to innovation and improve product performance and functionality, based on the reasons, the product specifications will be changed accordingly. The above without prior notice, the Company reserves the right to amend the final.
