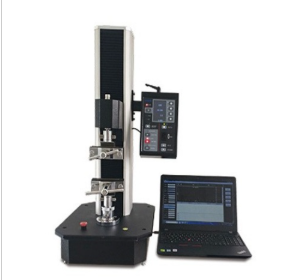

Children's Product Comprehensive Force Tester

Application Scope

The comprehensive force tester for children's products is used for the testing of tensile force, pressure (constant pressure, constant time) and torque (constant pressure, constant time) as stipulated in standards such as children's clothing standards, European toy safety standards, American toy safety standards, and toy safety technical specification standards.

Applicable Standards

GB/T 31701 - 2015, GB/T 6675 - 2003, GB/T 32599, EN71 - 1, BS 7909, ASTM F963, 16CFR1500.51, GB/T 22704, etc.

Instrument Features

1. The control panel provides instant access to common test functions (start, stop, return, calibration, reset gauge length and jog).

2. Integrated tension, compression and torsion functions, microcomputer control, electronic sensors, high - precision ball screws, AC servo motor drive, automatic data processing and storage, capable of analyzing the test process, high - precision and fully automated testing.

Technical Parameters

1. Type: Comprehensive force tester for children's products

2. Control system: Mechanical control panel + computer control software

3. Functions: Tensile force, pressure (constant load, constant speed, constant elongation), torque (constant force, constant load time holding, constant angle)

4. Measuring range/accuracy: Tensile force and pressure: 0.1 - 500N, accuracy: 0.01N

5. Torque: 0 - 1N.m, accuracy: 0.002N.m

6. Stroke: >300mm

7. Speed: Tensile force and pressure: 1 - 500mm/min, adjustable

8. Torque: 0.1 - 60rpm, adjustable

9. Power supply: AC220V
