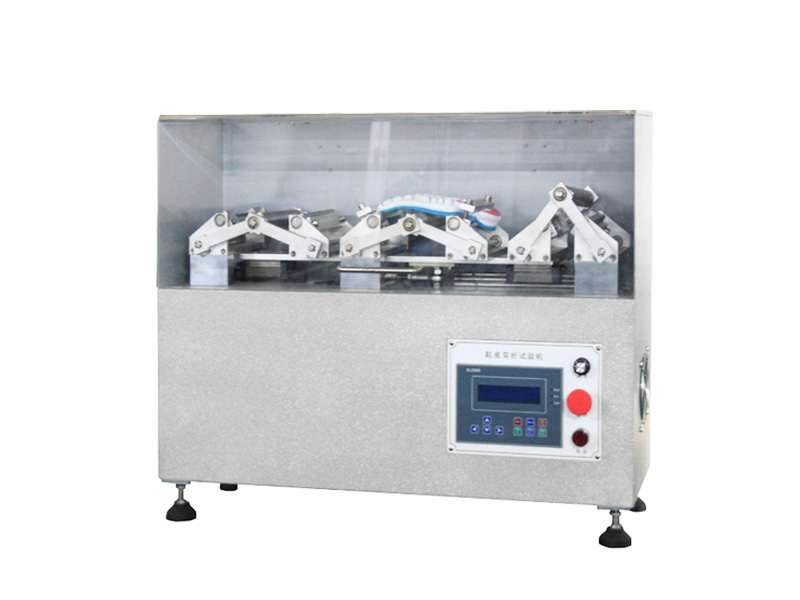

Shoes Sole Bending Resist Testing Machine

Bennewart Flex Tester is used to test outsole flexing resistance by flexing the outsole at a certain speed and angle.  The shoe outsole flexing method aims to check the effect of sole materials and surface patterns on cut growth.  This whole sole flexing tester methods meet ISO 20344, ISO 17707, DIN 53543 and etc.

Application:

This EN Sole Flexing Tester bennewart flexing machine is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.

Feature：

Plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.

Bennewart Flex Test Procedure:

Remove the heel from the outsole and clam the outsole according to the standard. Make sure the outsole would be fully flexed in the right position. Then to cut the sample with an equipped chisel(cutting cool) to the required length, the cut should be parallel to the bennewart flex machine. Pre-set the machine to run 30,000 cycles. After it finished the pre-set cycles, check the cut growth and any change of the outsole. For more information, welcome to contact us at any time!

Parameter:

Control mode：Touch screen controlled

Bending angle：90±2 °

Bending speed：125-150cpm

Mandrel diameter：30 mm

Clamps apart：110±1mm

Movable fixture stroke：41.5 ± 0.5 mm

Counting：0-9999999

Power supply ：1∮AC 220V 50/60HZ

Dimensions：105x42x60cm

Weight：About 90kg

Standards:

SATRA TM161,

ISO 17707,

ISO20344-2021 section8.6 ,

ISO20347 section 5.8.4,

AS/NZS 2210.2 section8.4.2

GB/T 20991 section8.4.2,

QB/T 2885, DIN 53543
