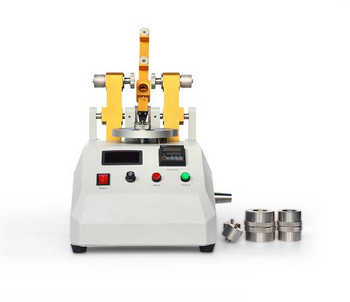

Taber Abrasion Tester - 5135

Taber Abrasion Tester - 5135

Skype / Email



Taber Abrasion Resistance Tester  applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous material's.


Applicable Standards:
 ISO 9352, ISO 5470, ISO 7784, ASTM D1044, ASTM D3884, ASTM D4060, GB/T 5137.1, QB/T 2726, DIN 53109


Taber Abraser with many types :


Taber Abrasion Tester (Double-Head) 5155


   Taber Abrasion Tester (Double-Head)

Taber Abrasion Tester

   Taber Abrasion Tester


Taber Linear Abraser

Taber Linear Abraser.jpg




Taber oscillation and wear instrument

   Taber oscillation and wear instrument.jpg

Taber Abrasion Resistance Tester

   Taber Abrasion Resistance Tester.jpg


Taber Scratch Tester

   Taber Scratch Tester


Taber muiti-finger scratch tester

   Taber muiti-finger scratch tester



Applicable industry:
 TABER Tester is used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; Commodity inspection, arbitration, and technical supervision departments.


Taber abrasion resistance tester

Core advantages:
▶ Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment,
▶ wearing can be preset number of turns. Arm can match with balance weights, accurate weight balance abrasion arm,
▶ to realize the ASTM standard which requires 125 g pressure requirements
▶ Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy
▶ Brand motor, mute, low noise, smooth operation



Specifications

spinning speedadjustable within the range of 30-75r/min (digital)
The sample surface diameter100mm
Sample table diameter113mm
setting range of Number of turns1-999999
Air pressure250g
Weight (based on purchase)Counterweight、250g、500g、750g、1000g
Wheel pressure range125g、250g、500g、750g、1000g、1250g
Vacuum arm heightAdjustable
power220V,50Hz
Size220mm×380mm×300mm
weight20kg




Basic configuration
G270Taber Abrasion Resistance Tester
                        (250g、500g、1000g)
       Weight × 1 set (250g, 500g, 1000g each one pairs)
Optional Accessories NA
Model 503-13Scuffing head mounting bracket; scuffing heads "A" and "B"; scuffing head weight (2 lb.)
270011 pair of 125g Balance weights and fixed screw
27002-11 pair of Import original abrasion wheel CS-10×1
27002-21 pair of Import original abrasion wheel H-18×1
27003Import the original decoration sandpaper (grinding disc) S - 11 x 1 package (100 pieces/package)
27004Import original sample sticker S - 36 (50 / package)
27005Diamond wheel polisher (friction wheel polishing Taber)
XC001One set of the vacuum cleaner



Taber Abrasion Tester.jpg
